Review capsule description and parts layout

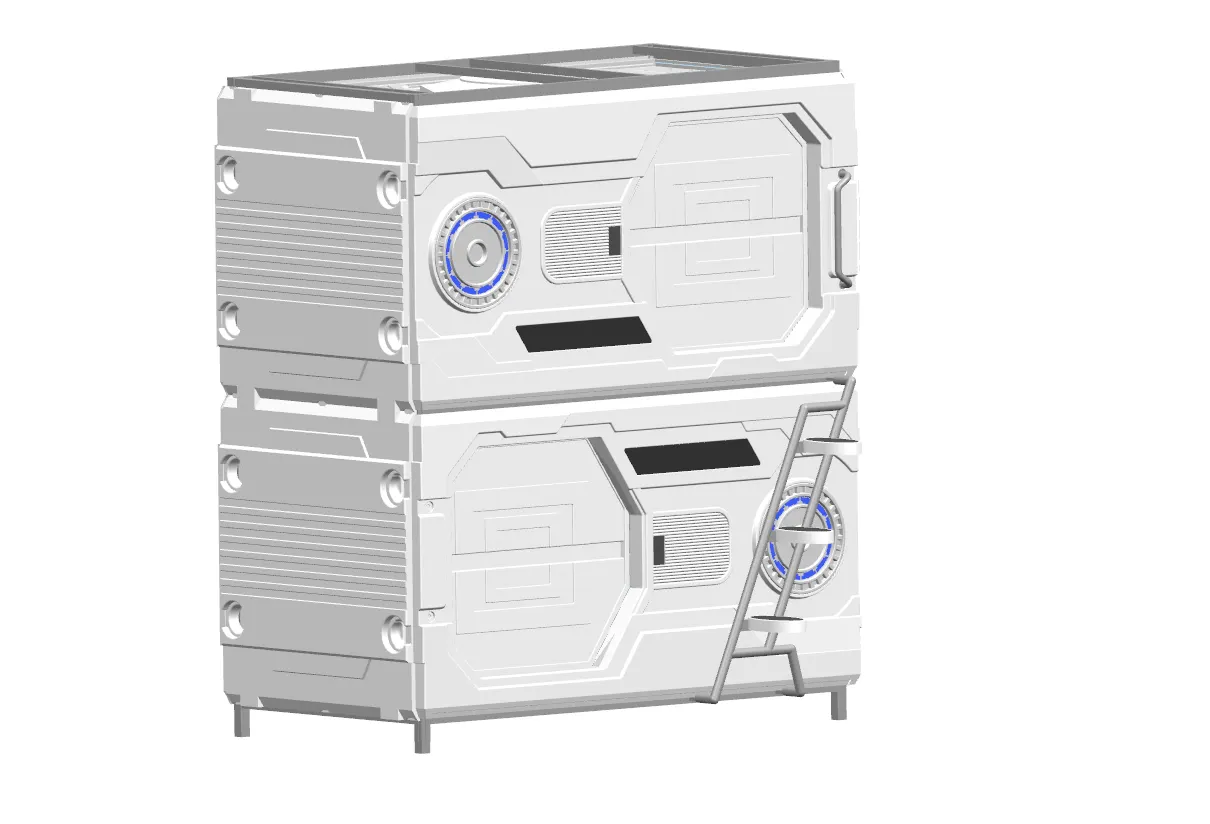

Use the manufacturer overview image to identify the main frame, panels, door, ladder, air fan and accessory positions before assembly.
Manufacturer installation file converted to web guide
Capsule Bed Installation Guide
Complete visual assembly instructions for capsule beds and sleeping pods, including frame setup, bottom and top capsule panels, door fitting, ladder, accessories, air fan, electrical reference, side panel and back panel.
38 visual references
All images from the manufacturer DOCX are included in order.
Safety-first flow
Frame, panels, door and electrical areas are separated clearly.
Installer friendly
Designed for mobile site visits and desktop review before dispatch.
Installation phase
Before starting
02

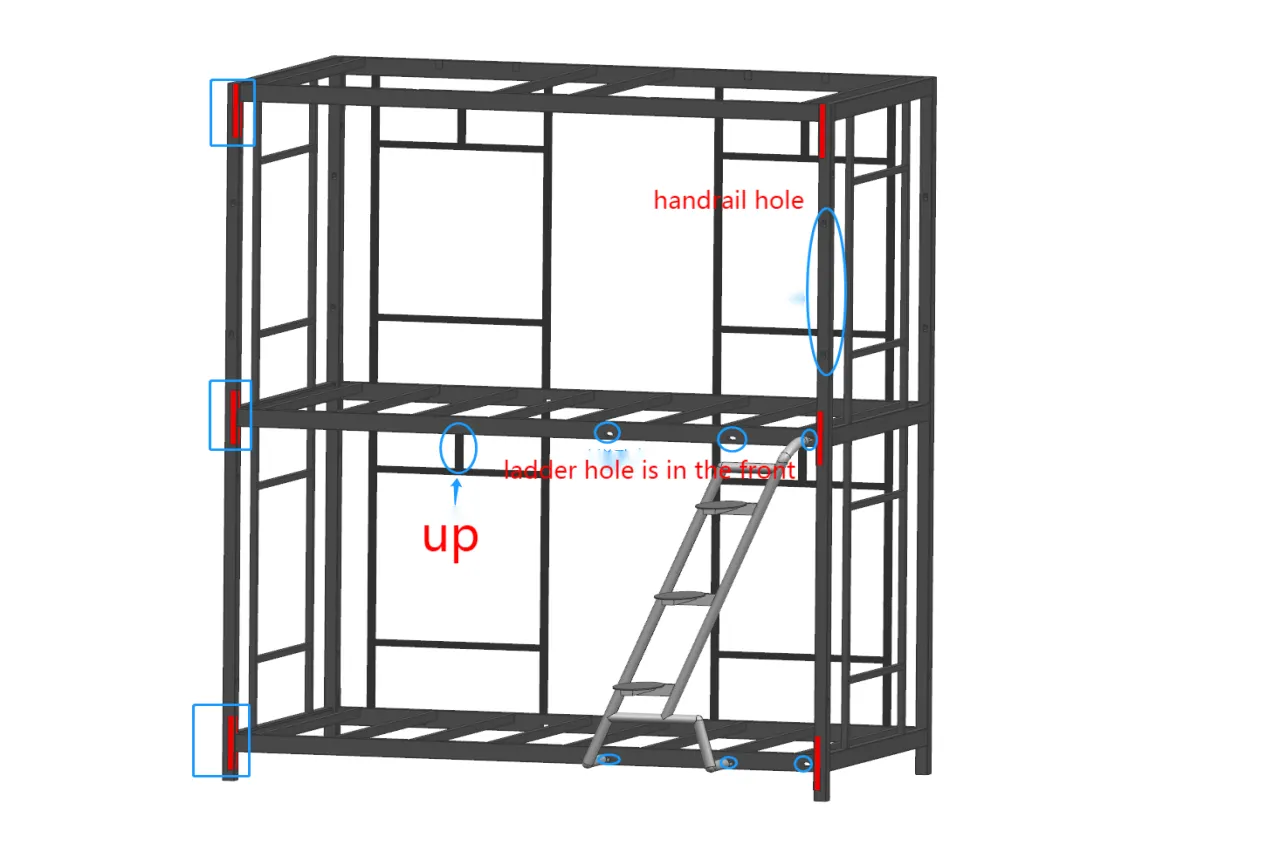

Read the installation tips
Confirm orientation marks, keep fasteners grouped, and verify the top and bottom capsule parts before lifting or fixing panels.
Installation phase
Bottom capsule
03

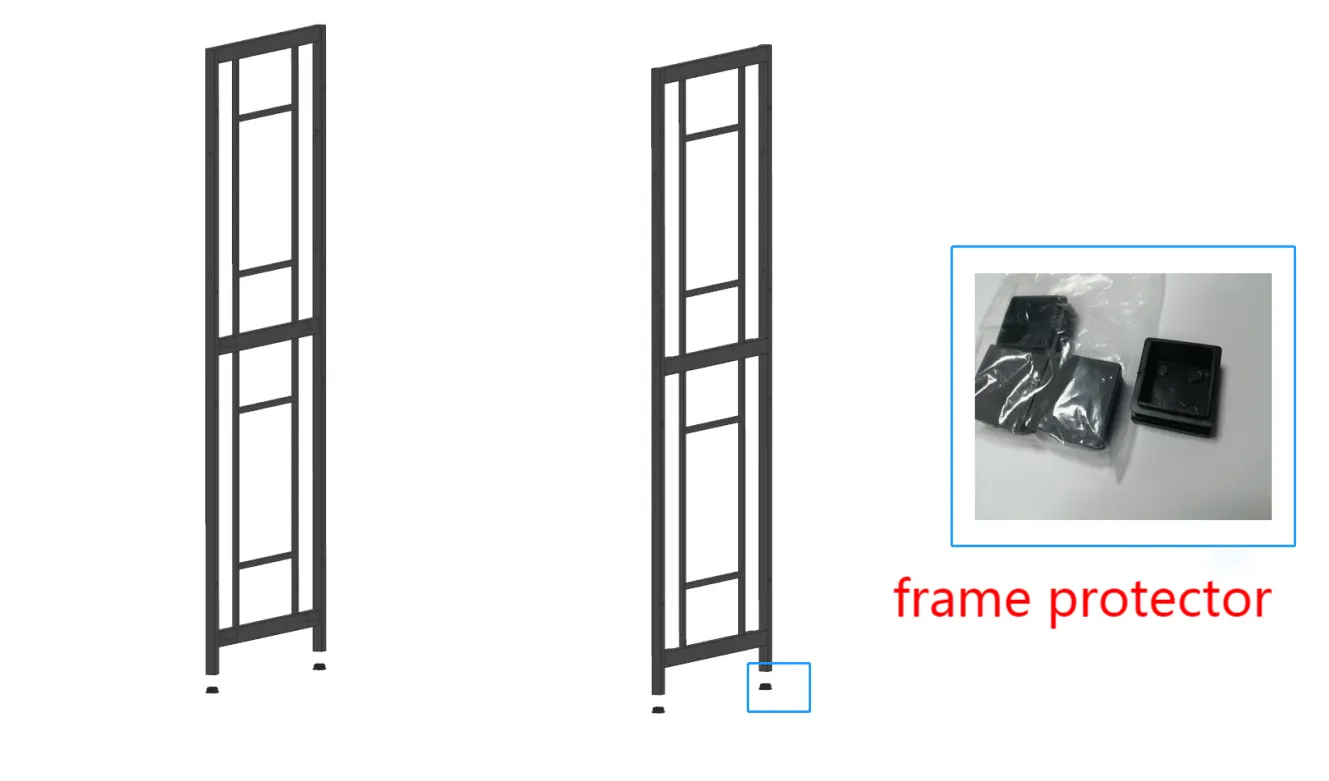

Assemble frame protector
04

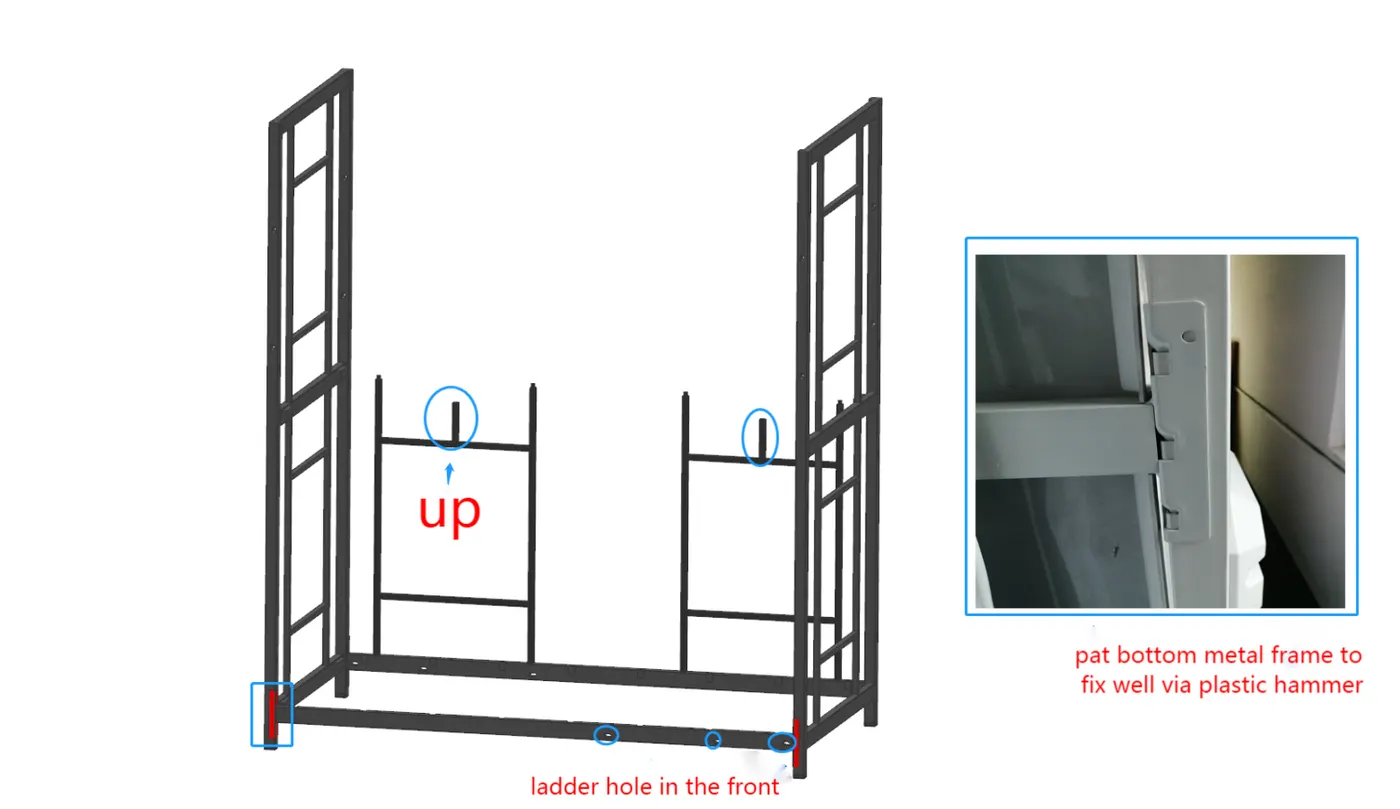

Assemble bottom metal frame and H shelf frame
Check the direction shown in the drawing before tightening.
05

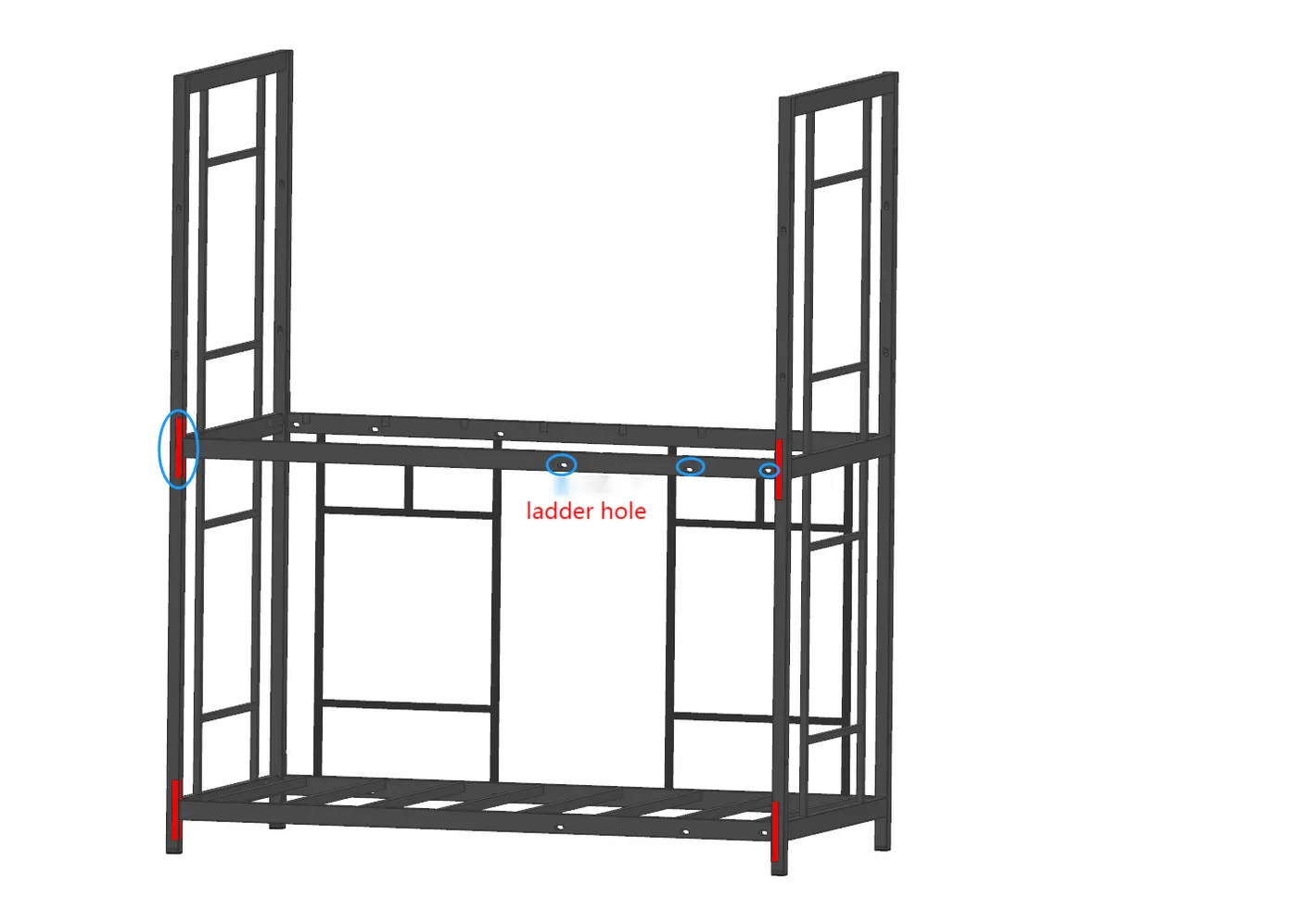

Assemble the second bottom frame
06

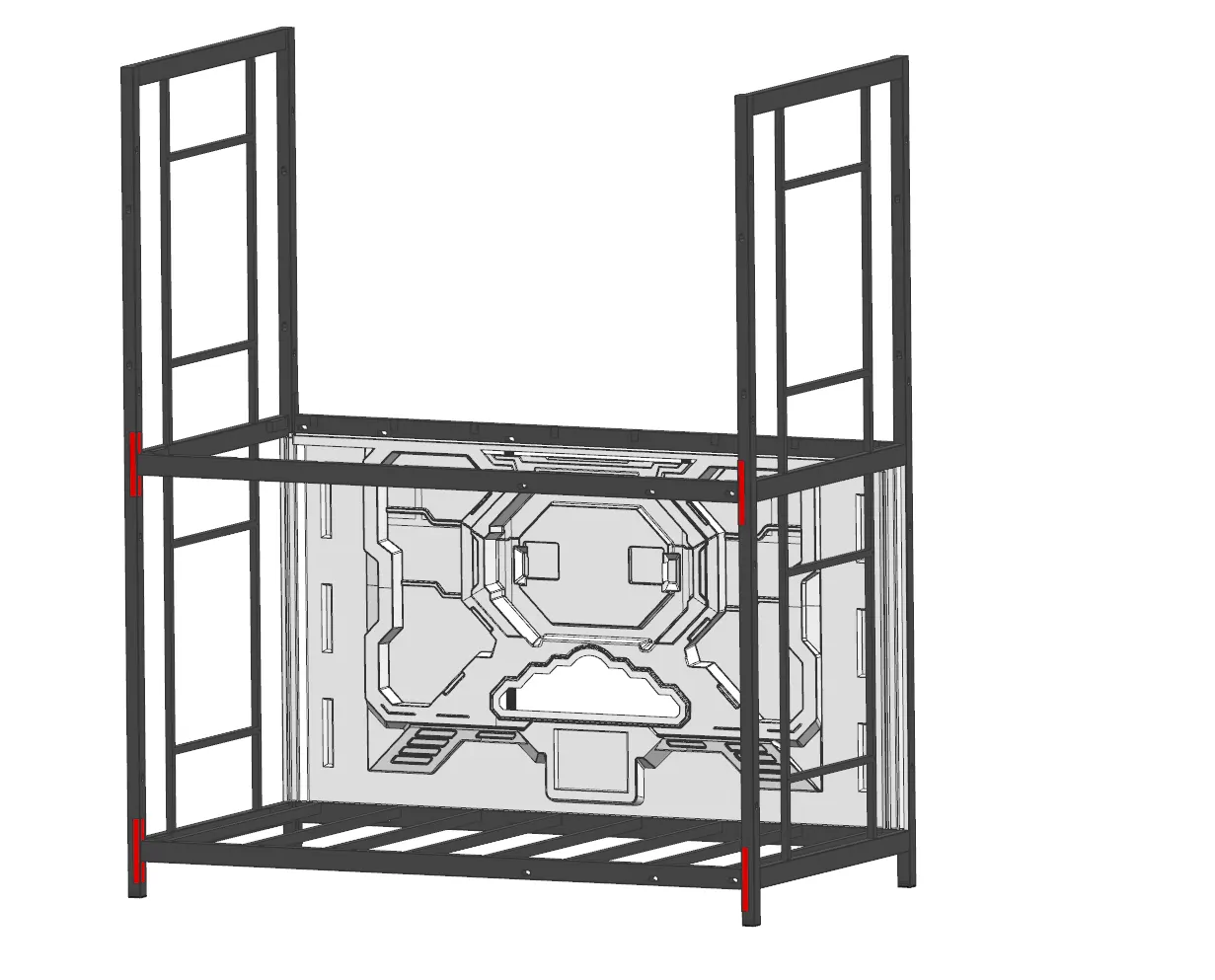

Assemble dresser
07

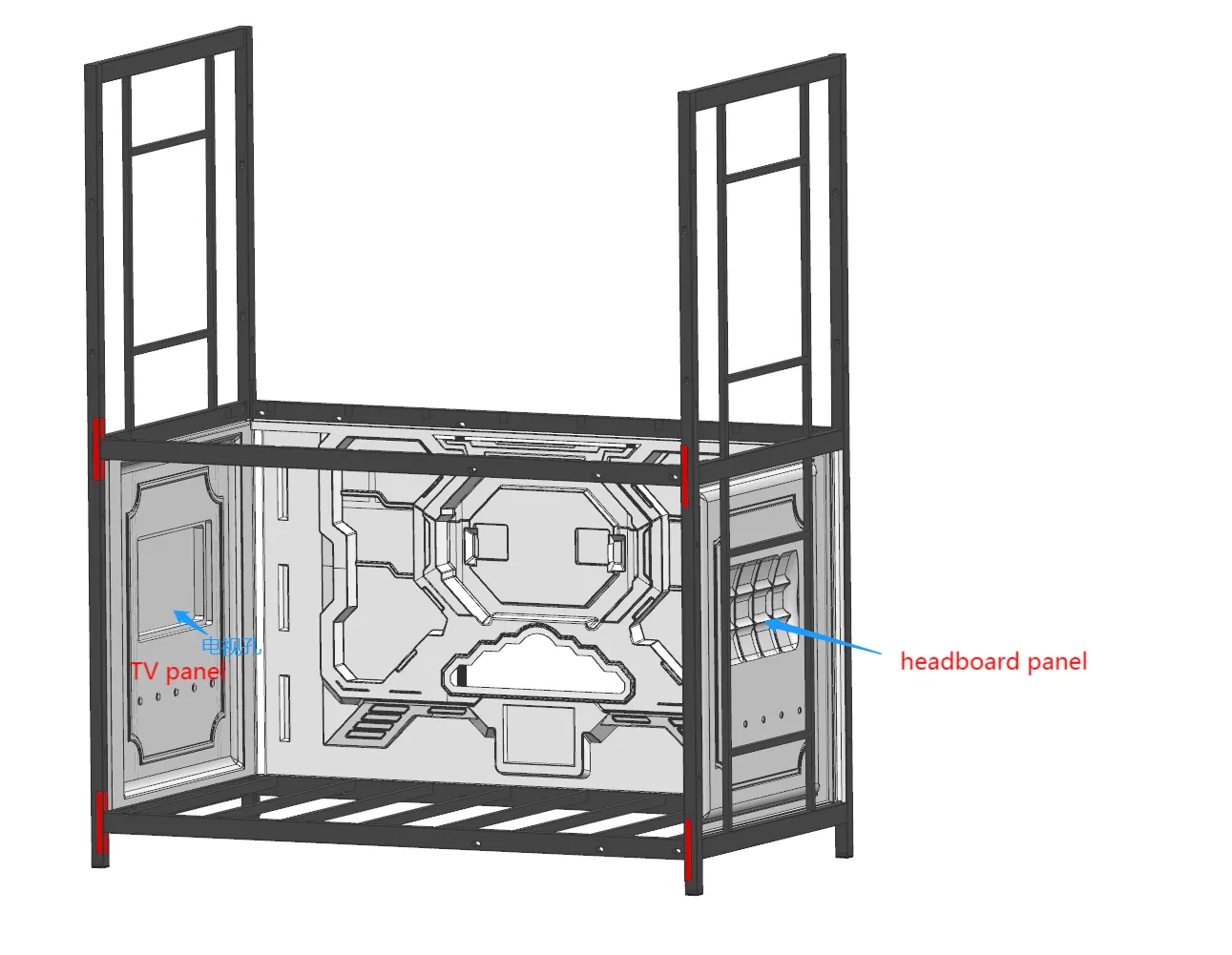

Assemble TV back panel
Confirm panel direction before fixing.
08

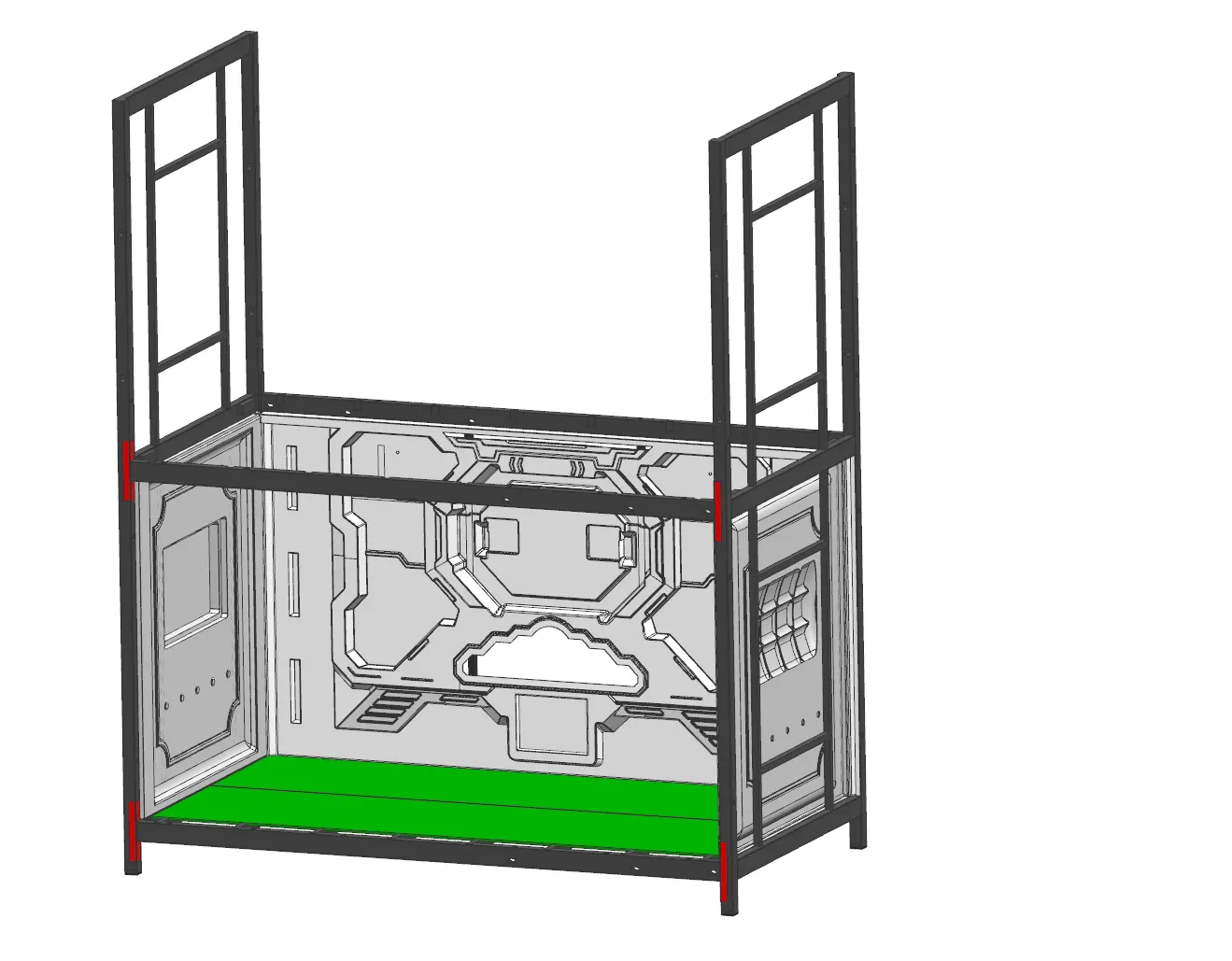

Place the bed board on the bottom frame
09

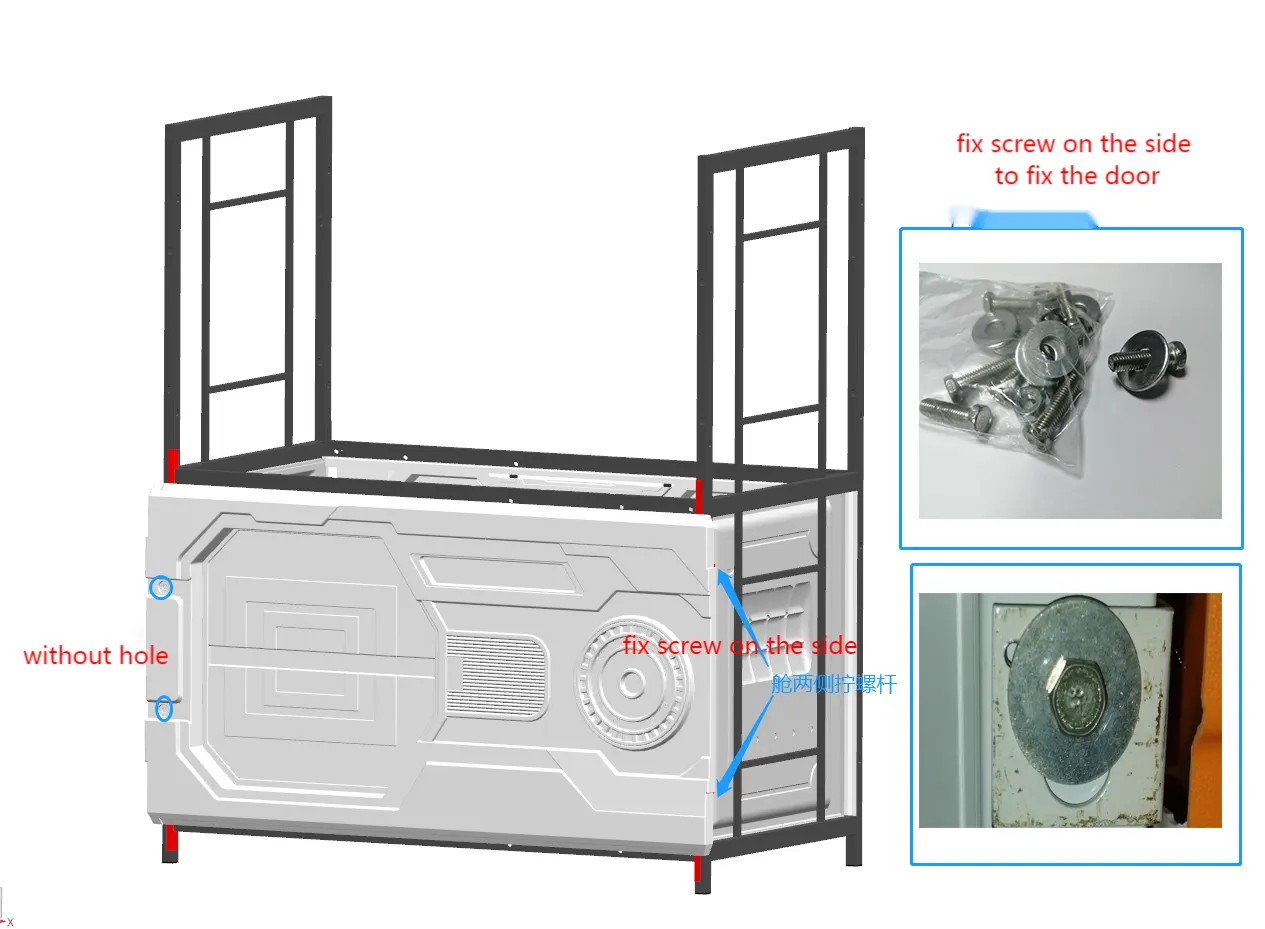

Assemble bottom capsule door
Top and bottom doors are different. Match the correct door before installation.
10

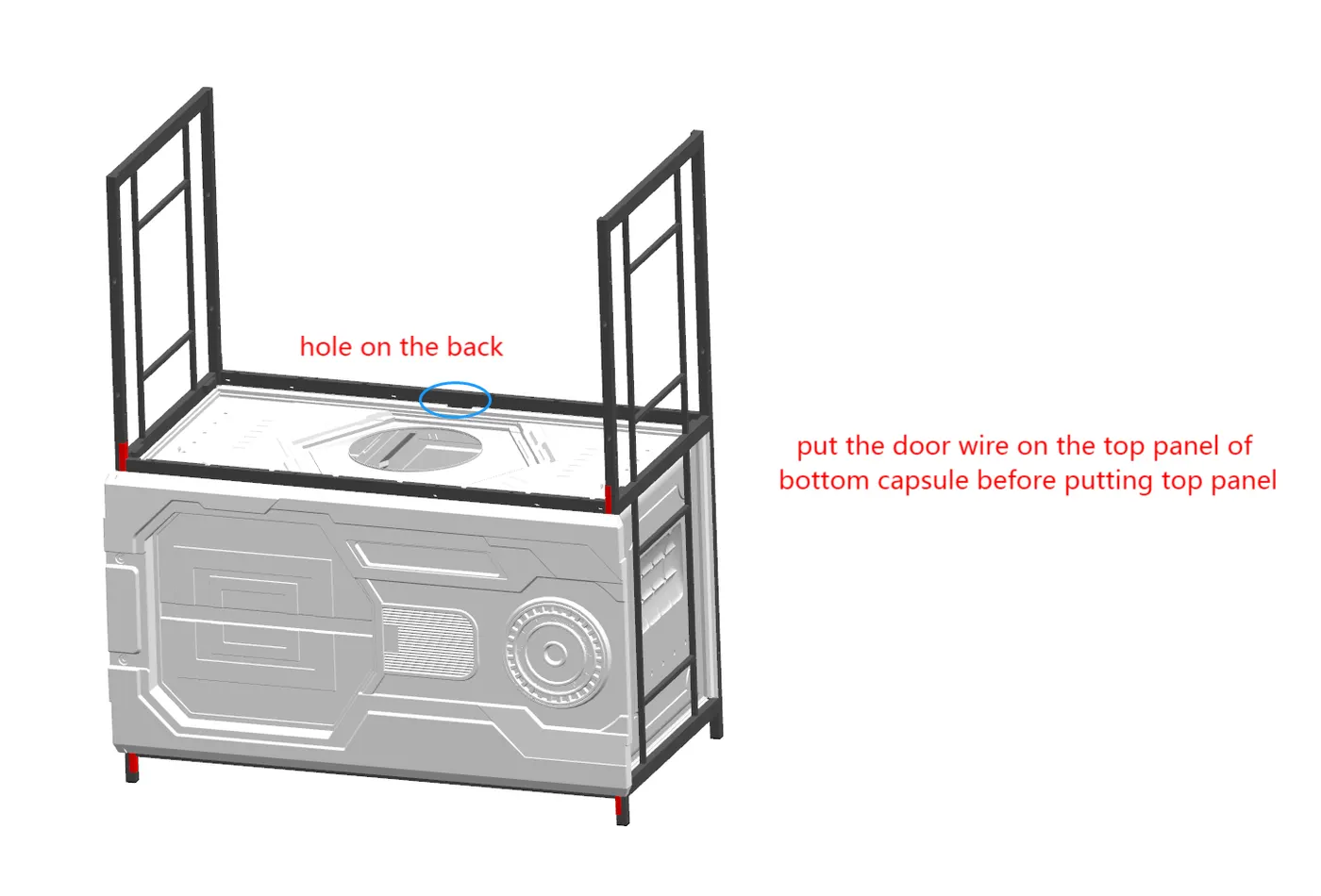

Assemble top panel for bottom capsule
11

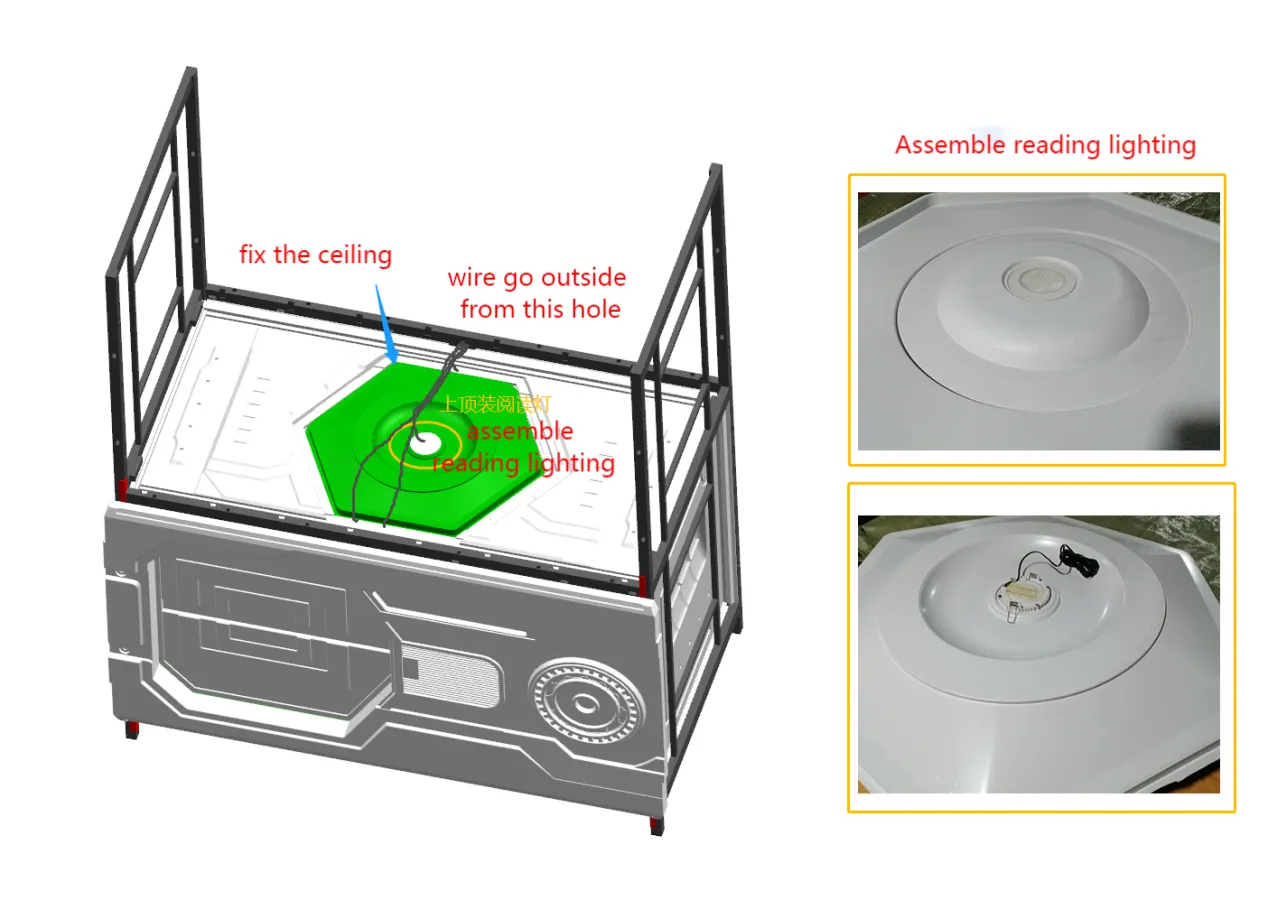

Assemble top ceiling for bottom capsule
12

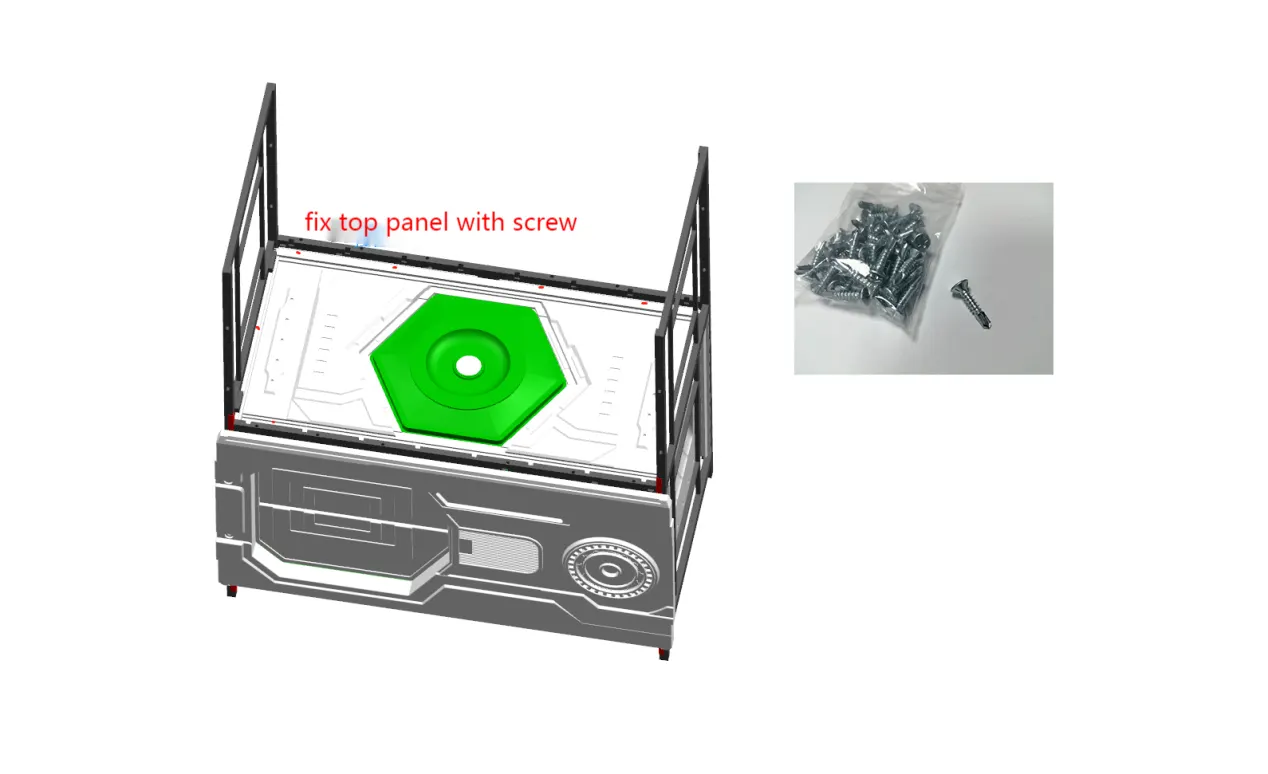

Fix top panel of bottom capsule
Installation phase
Top capsule
13

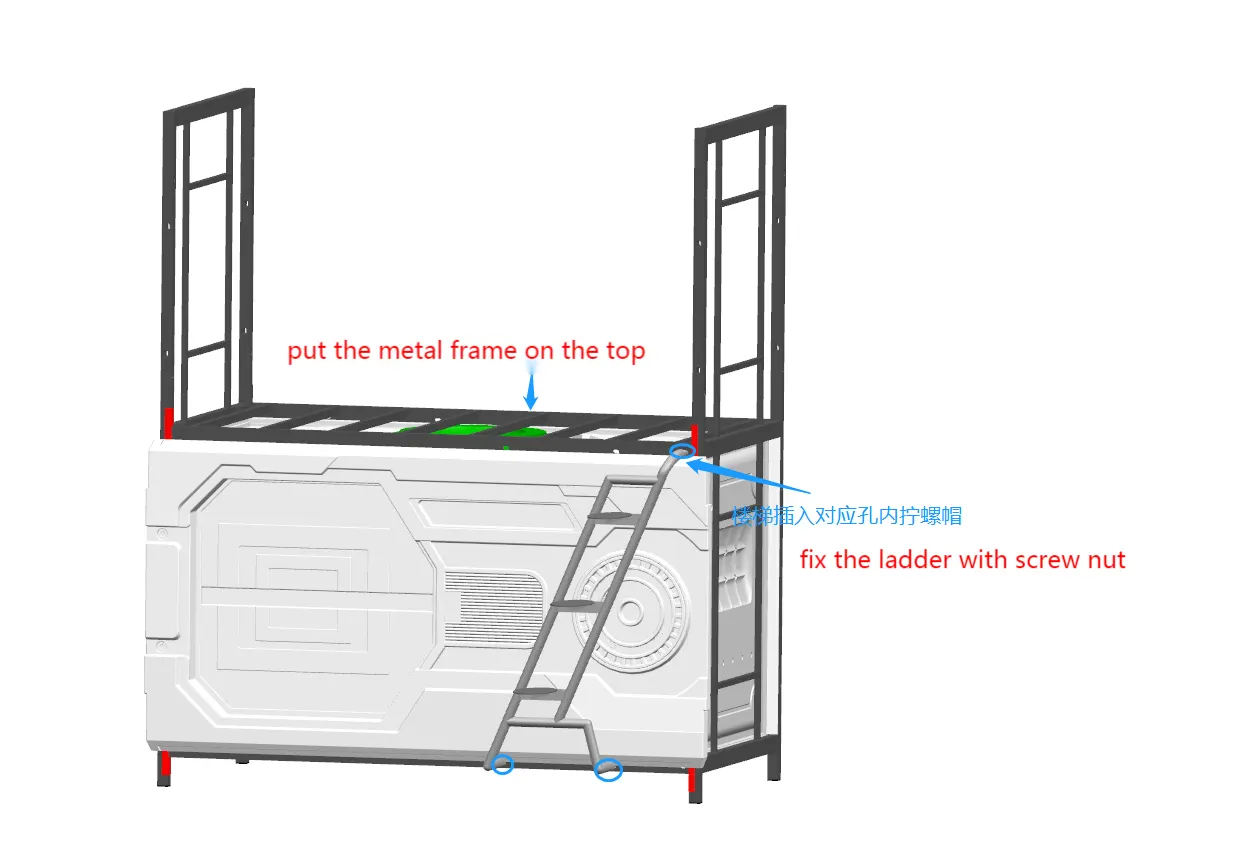

Assemble ladder
14

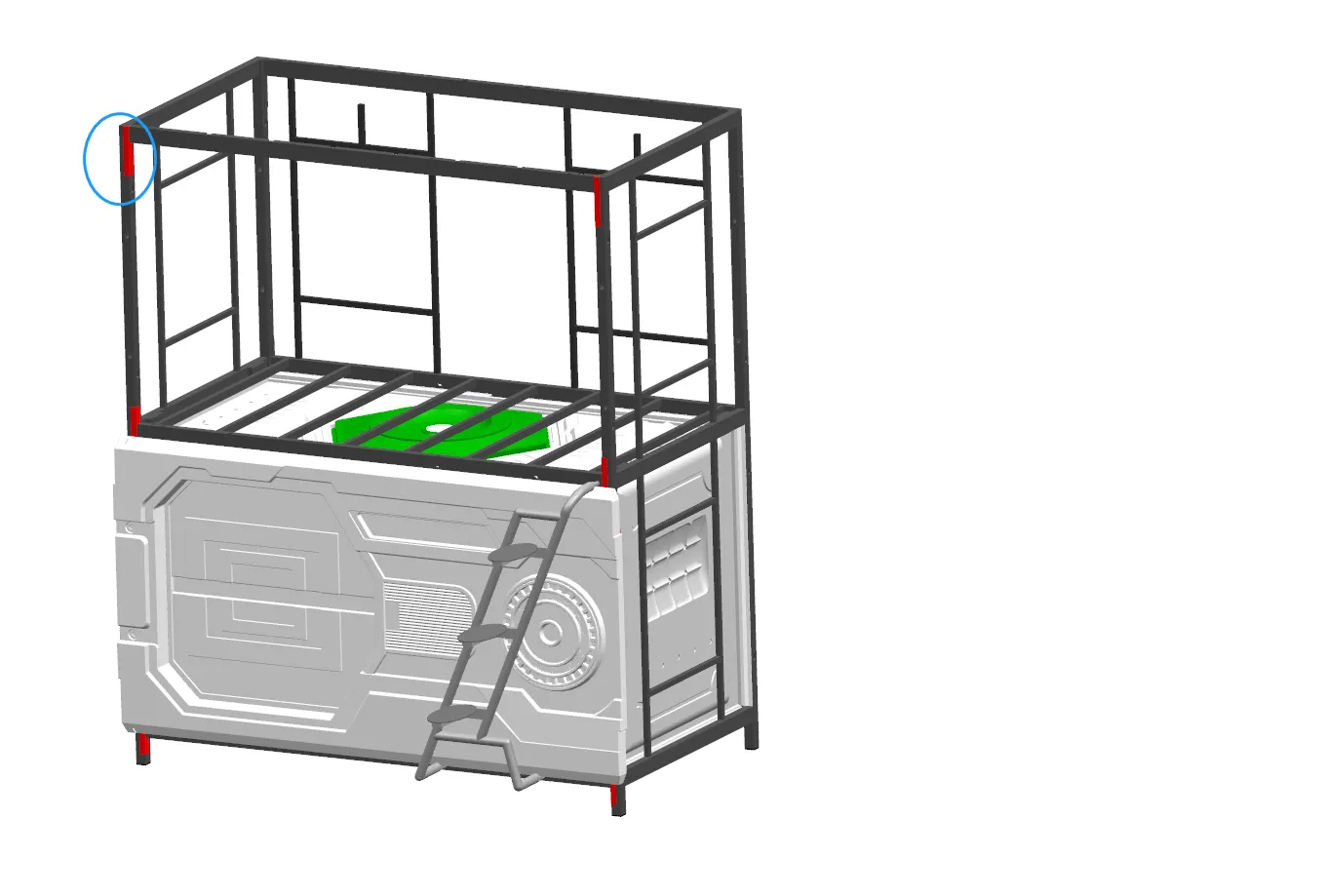

Assemble frame of top capsule
15

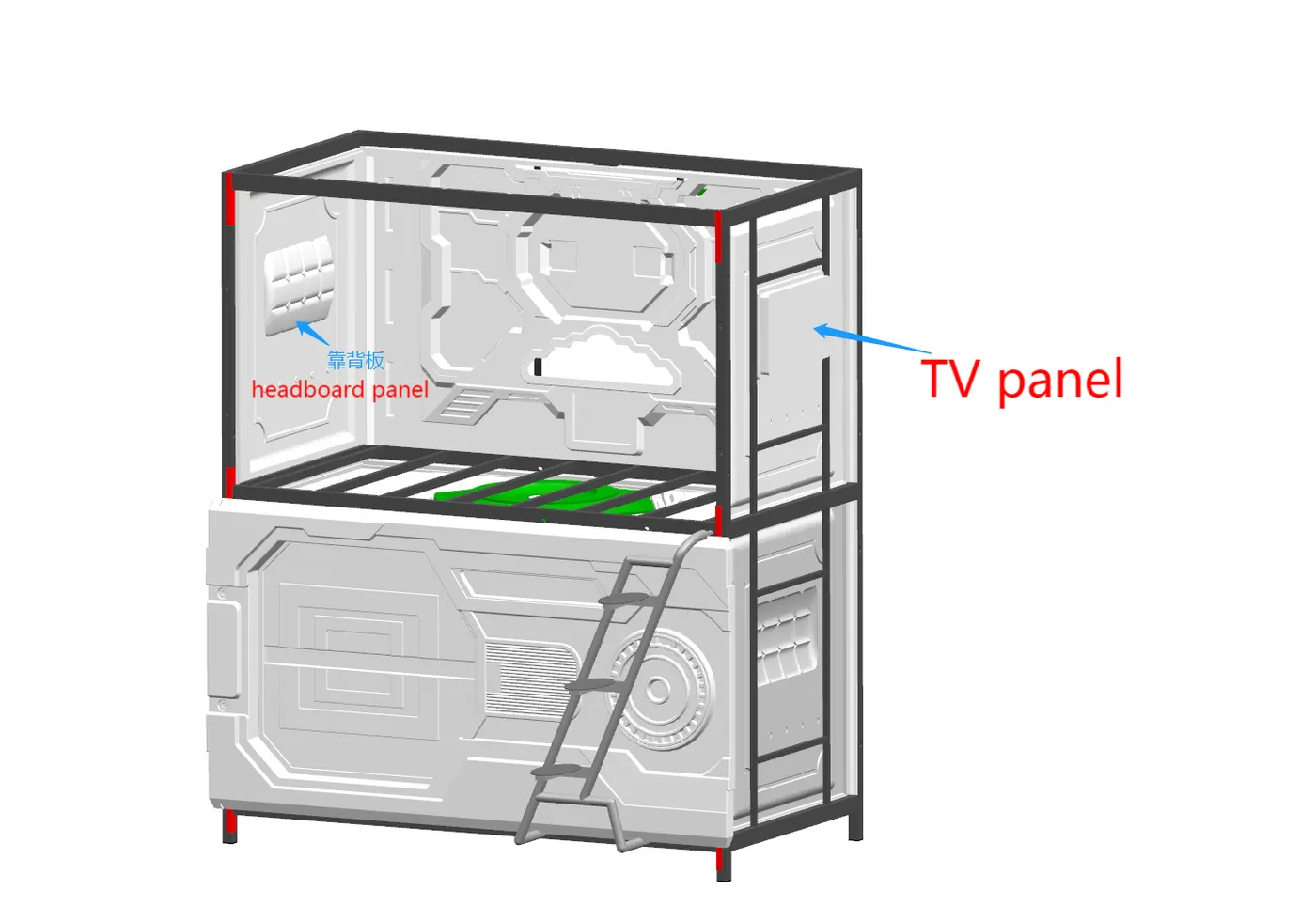

Assemble dresser and TV back panel for top capsule
Check the shown direction before final fixing.
16

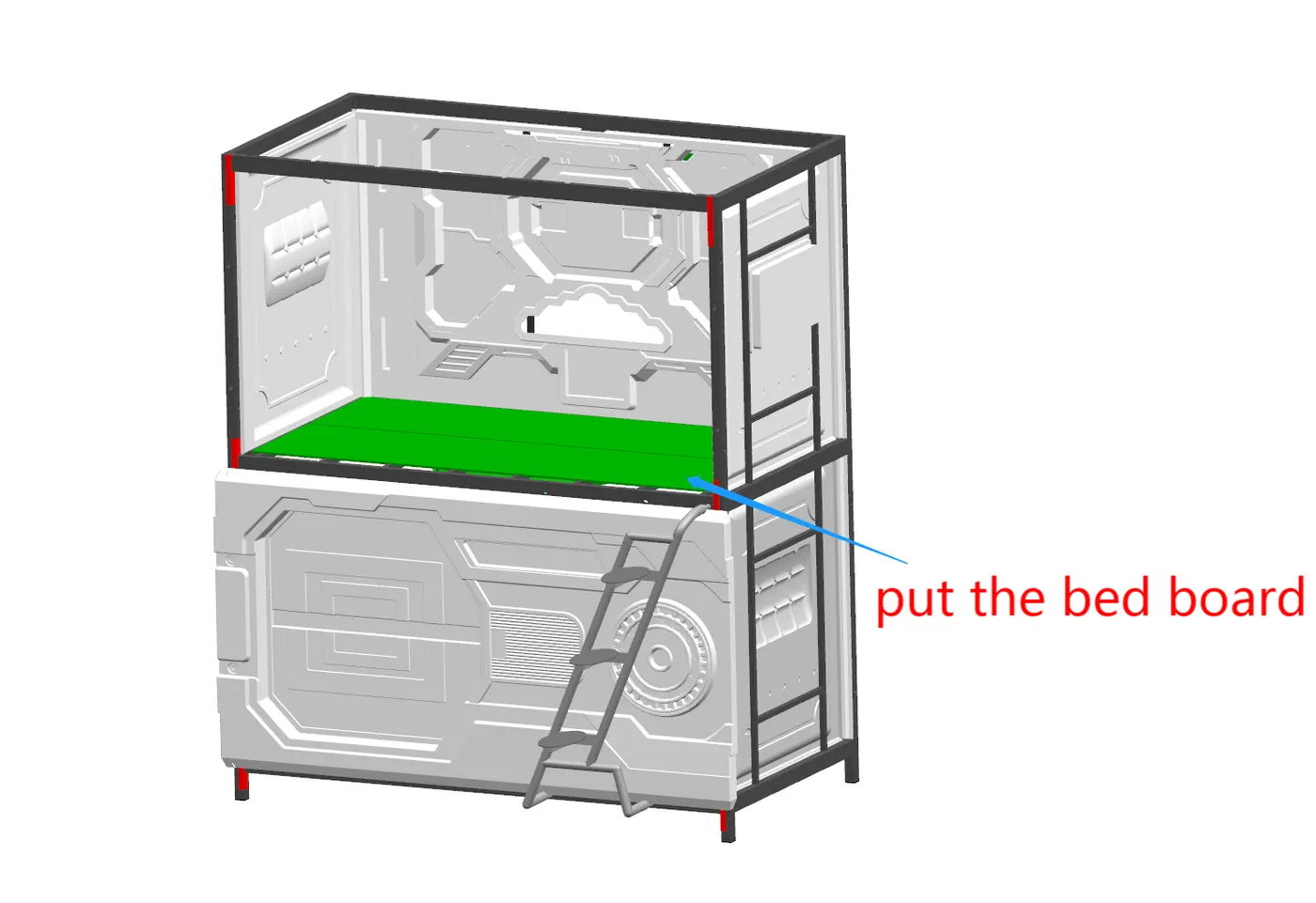

Place bed board for top capsule
17

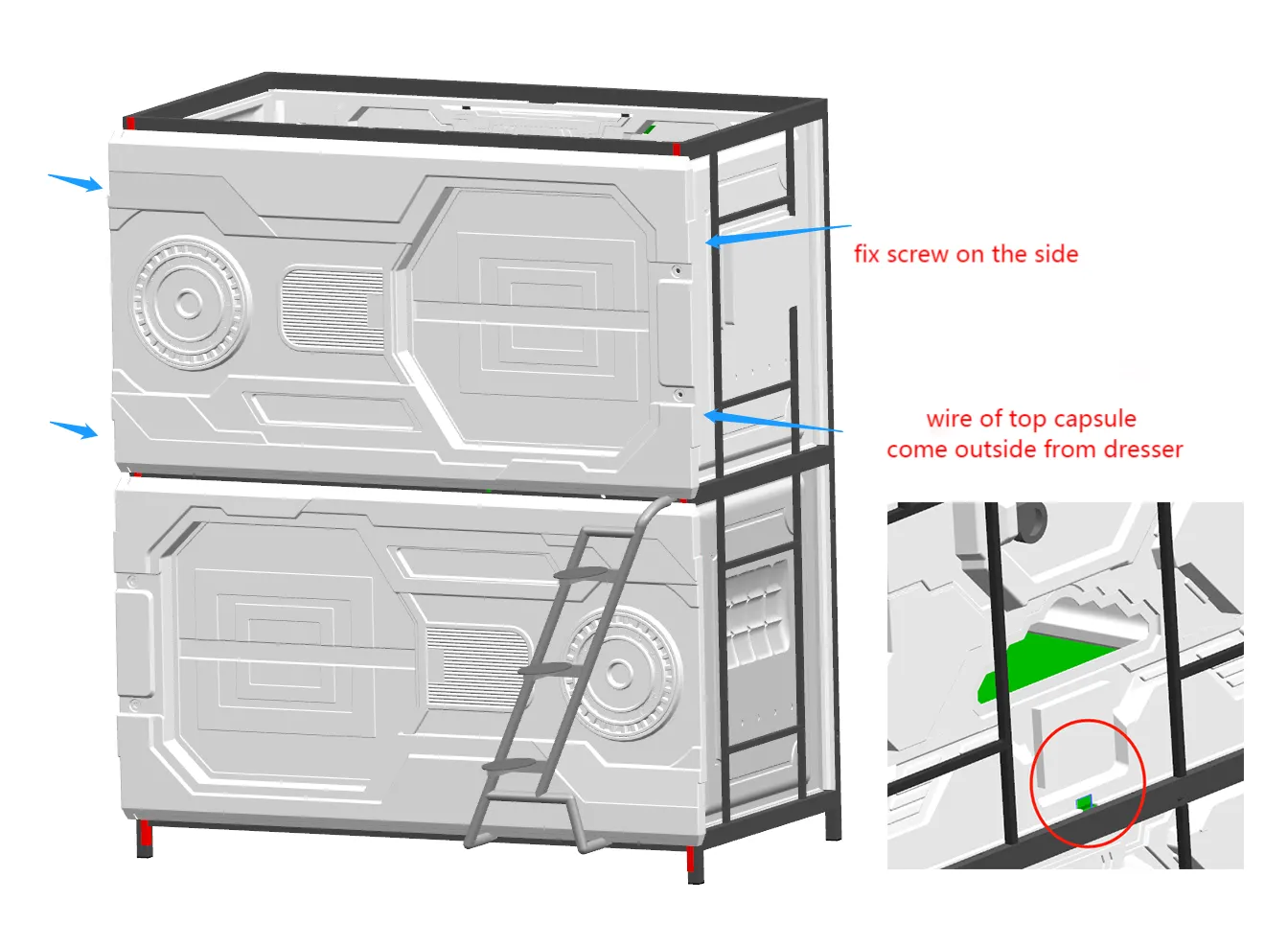

Assemble the top capsule door
18

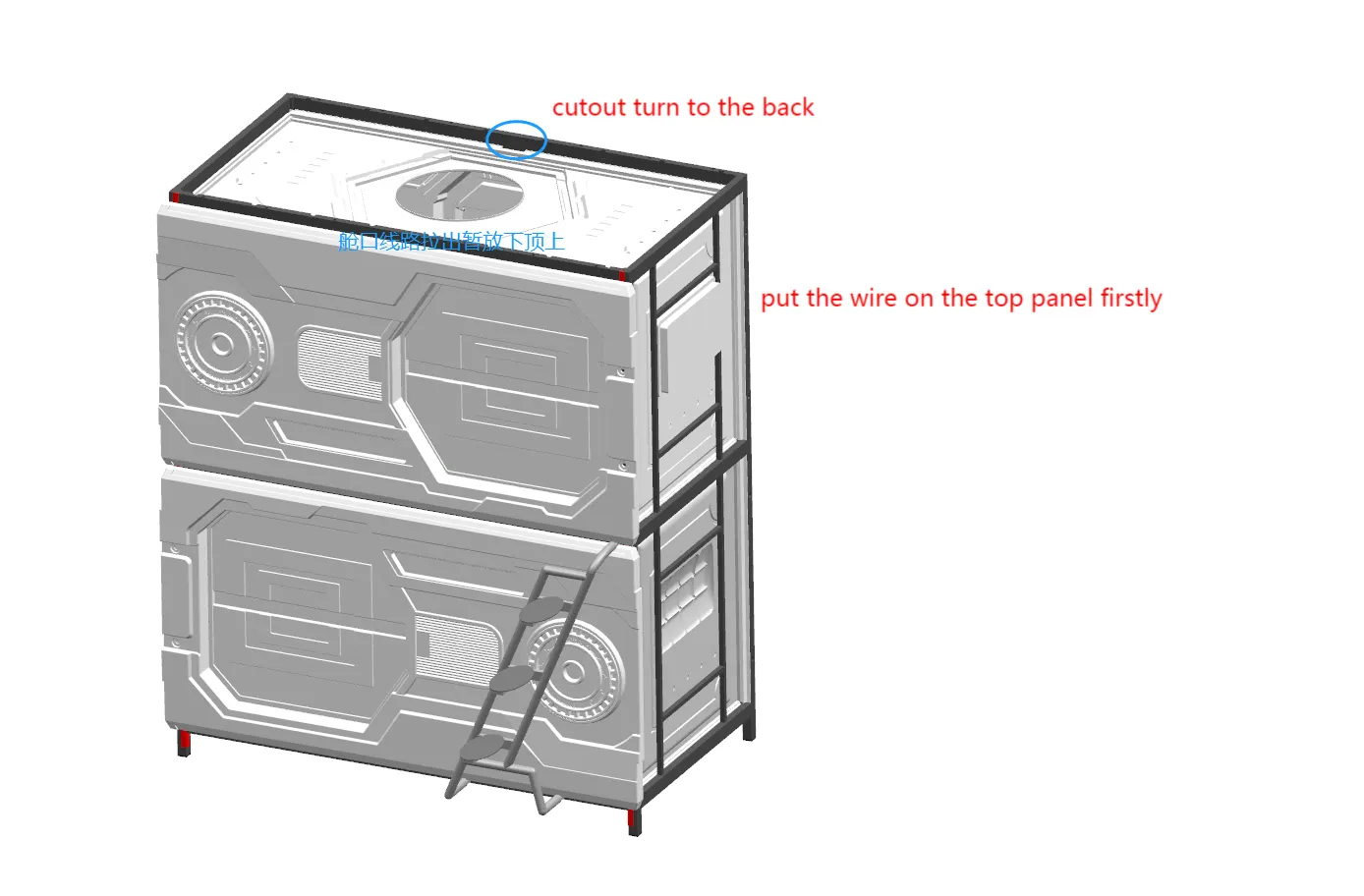

Assemble top panel of top capsule
19

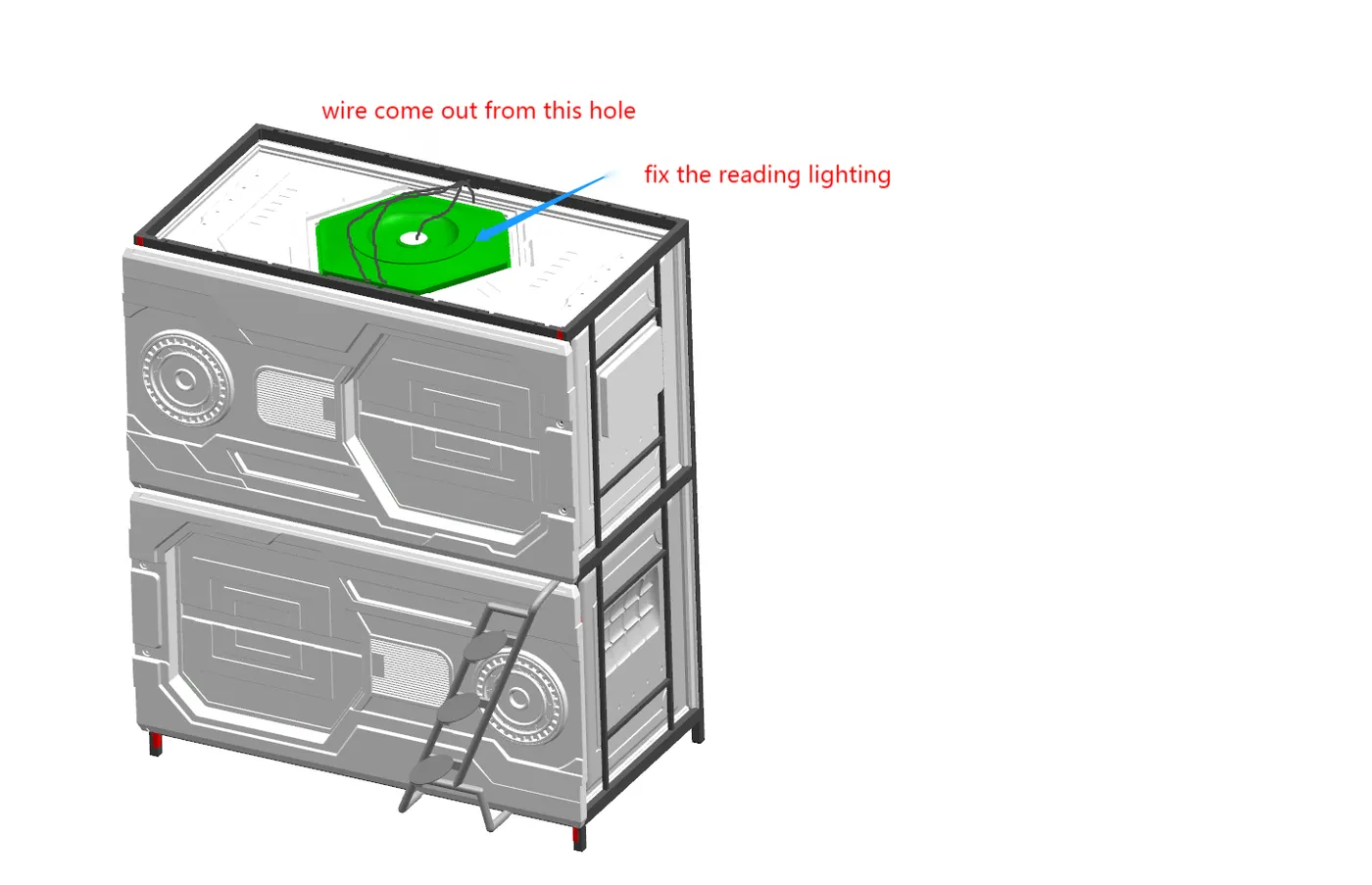

Assemble top ceiling of top capsule
20

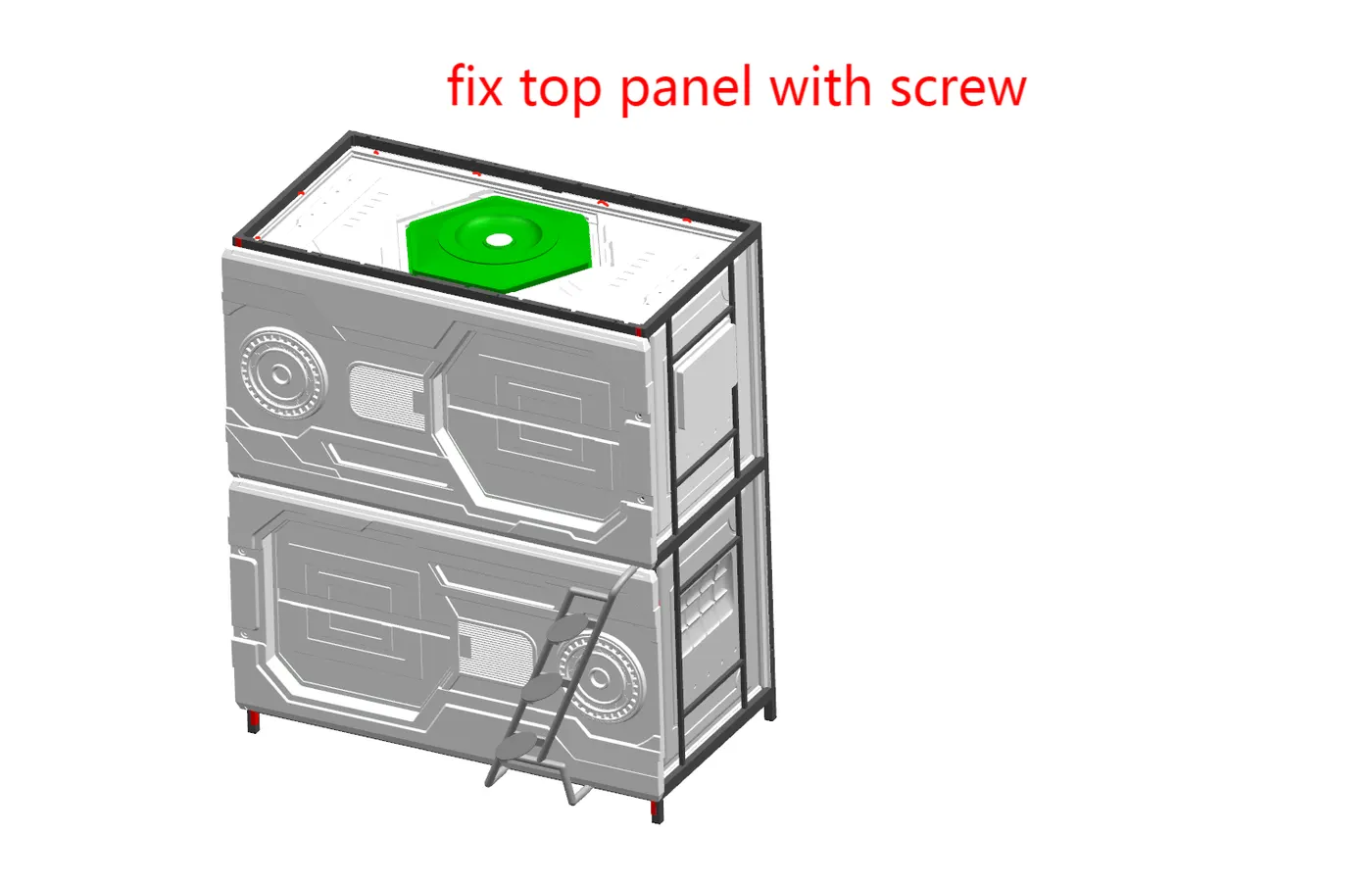

Fix top panel of top capsule
21

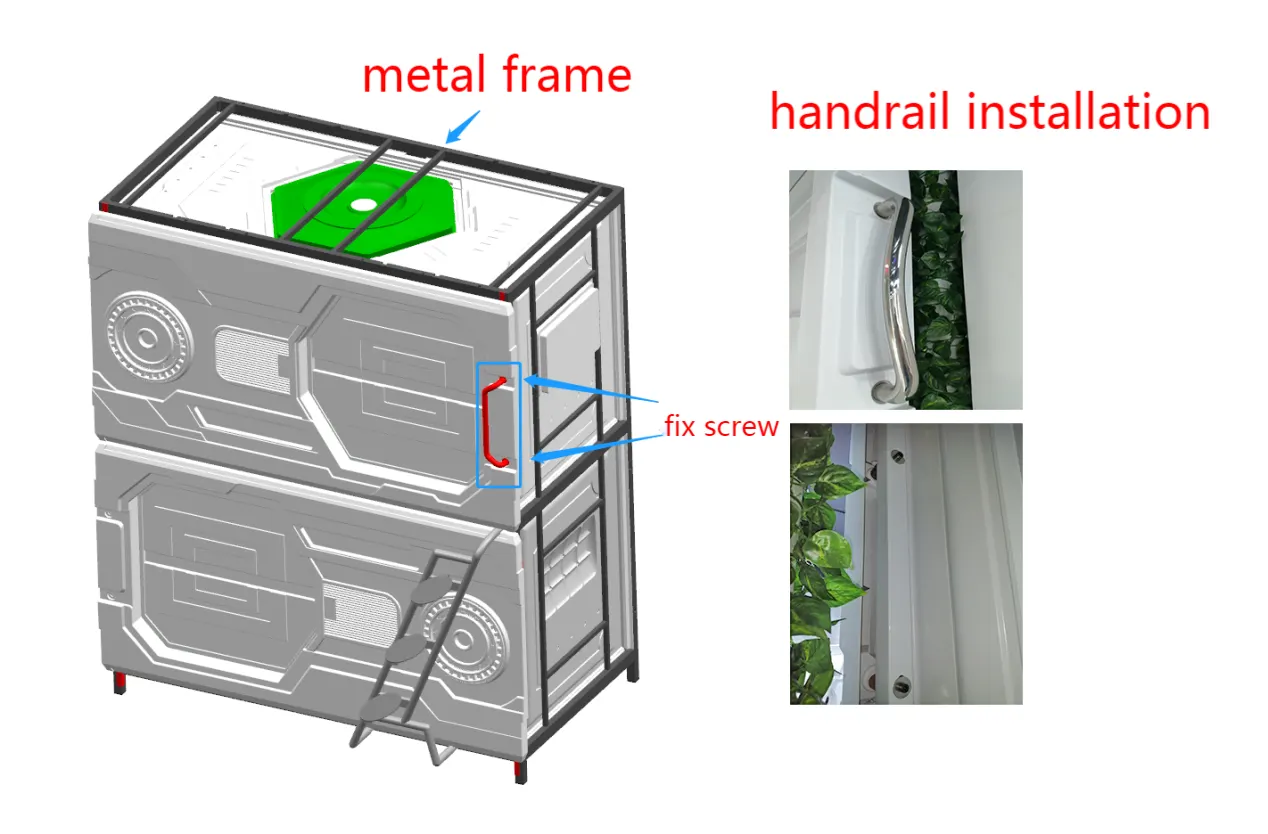

Assemble handrail
Installation phase
Accessories and services
22

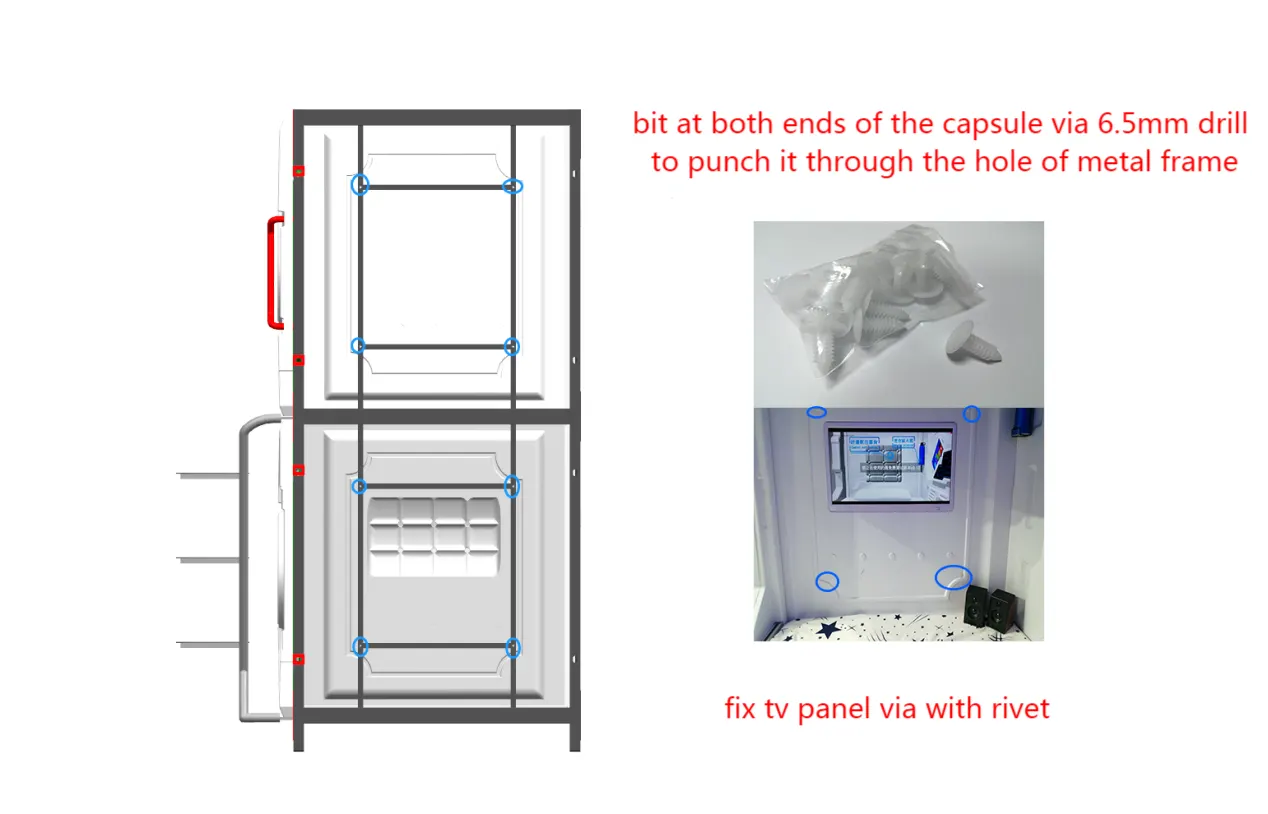

Fix TV panel with rivets
23

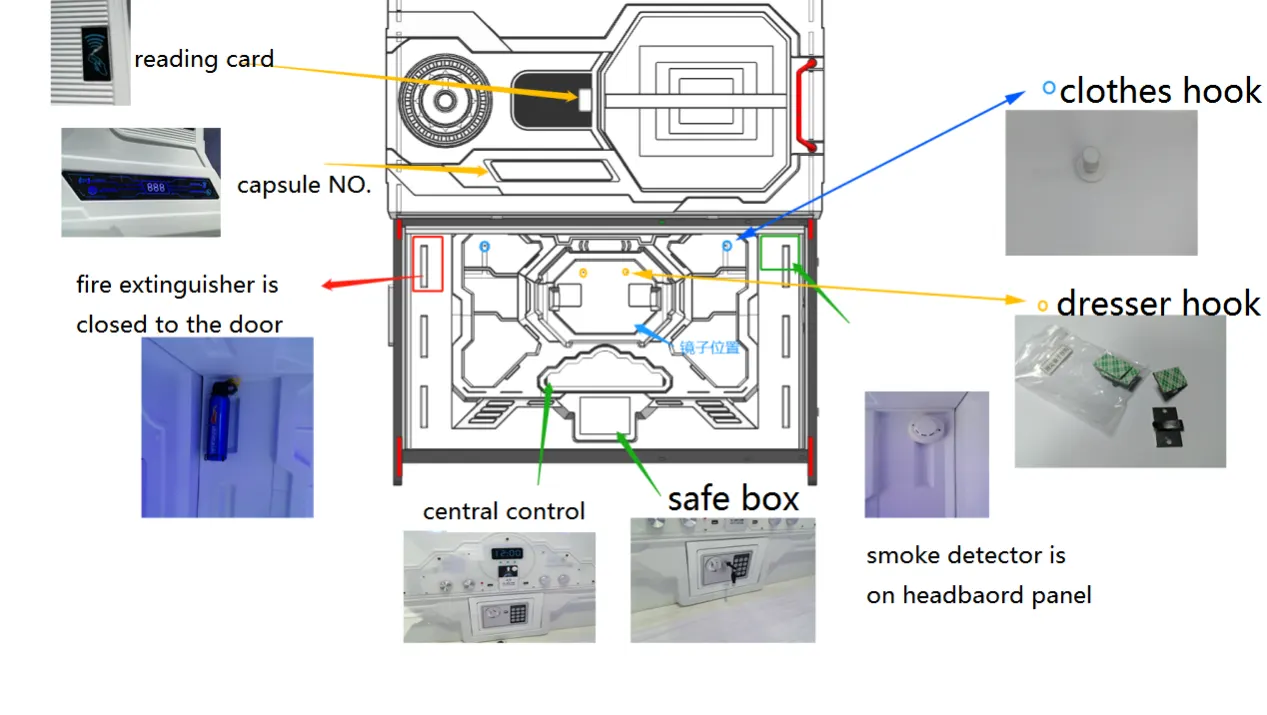

Install small equipment
24

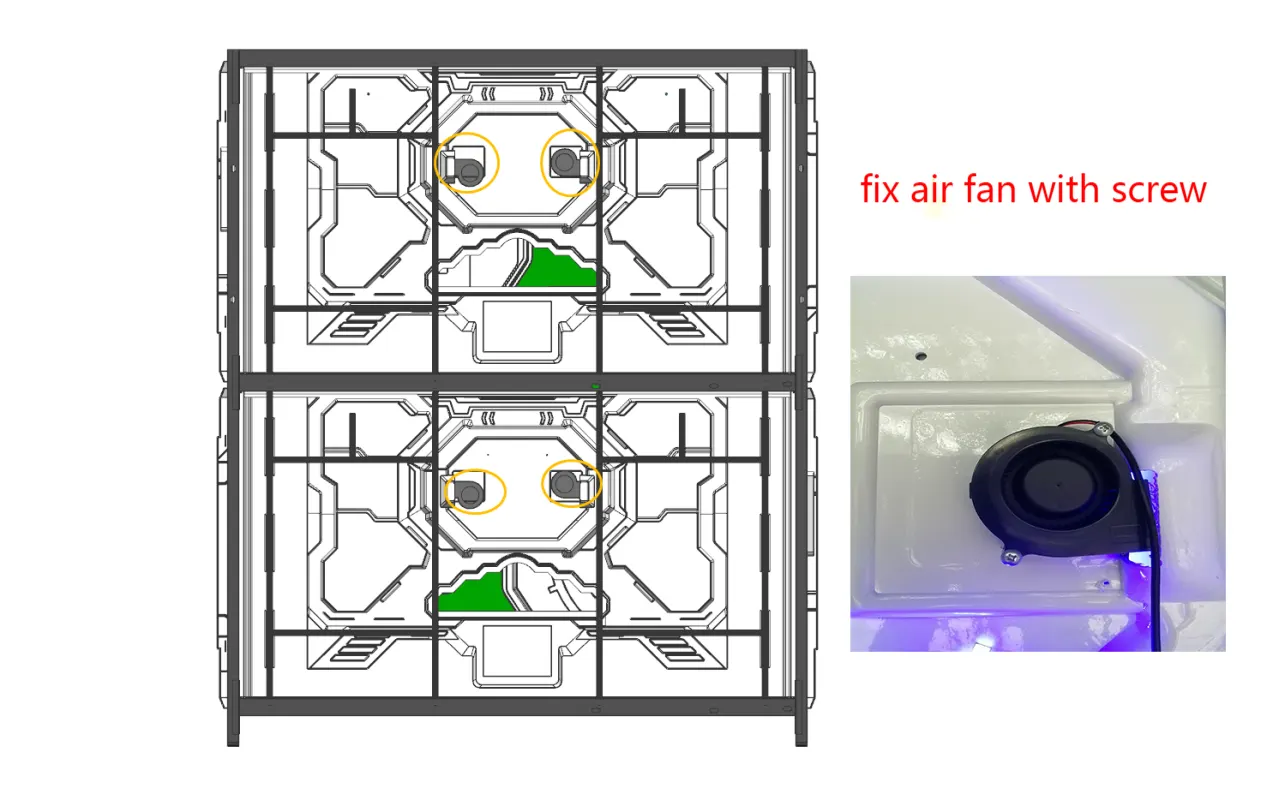

Assemble air fan
25

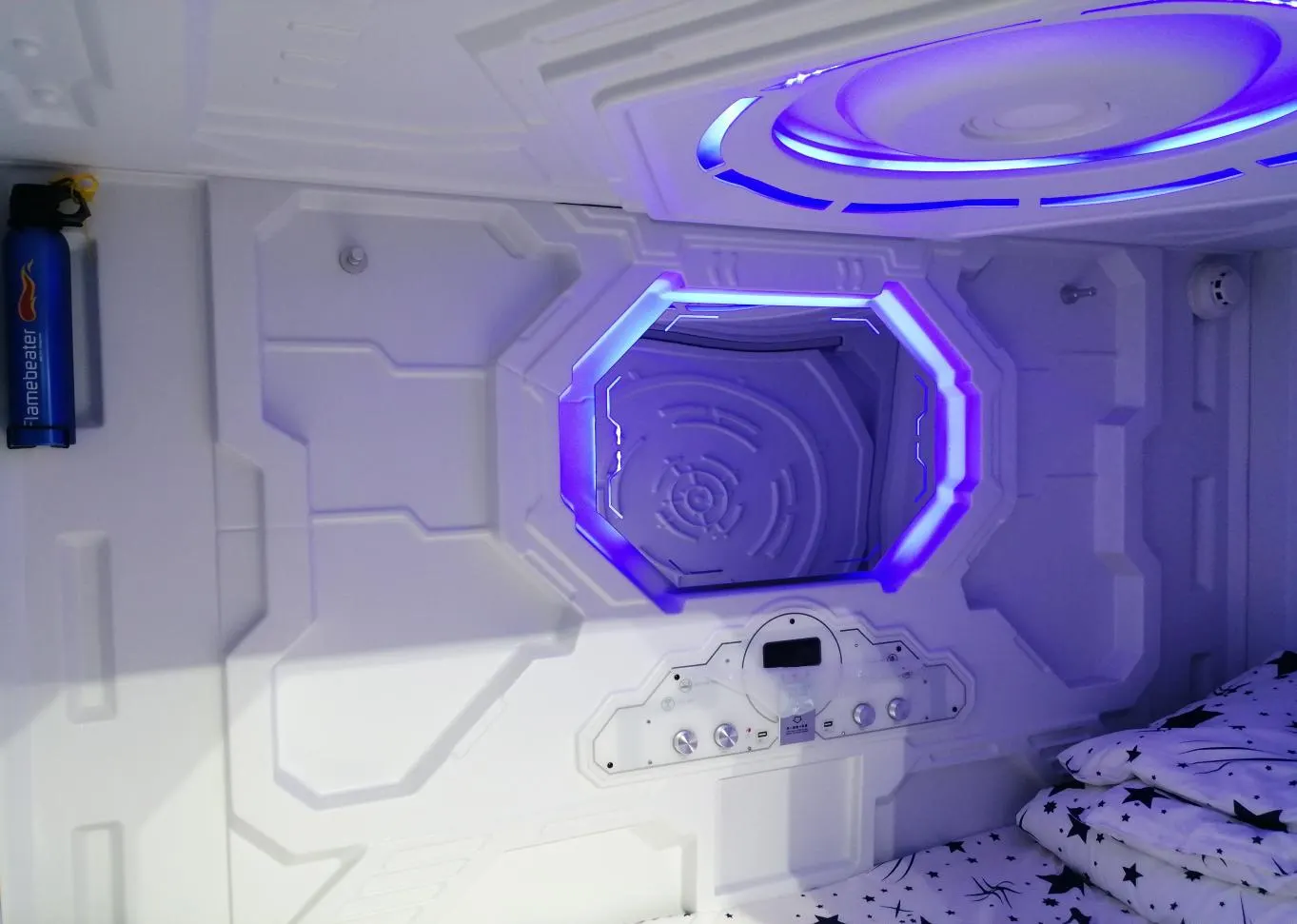

Check capsule accessory layout
26

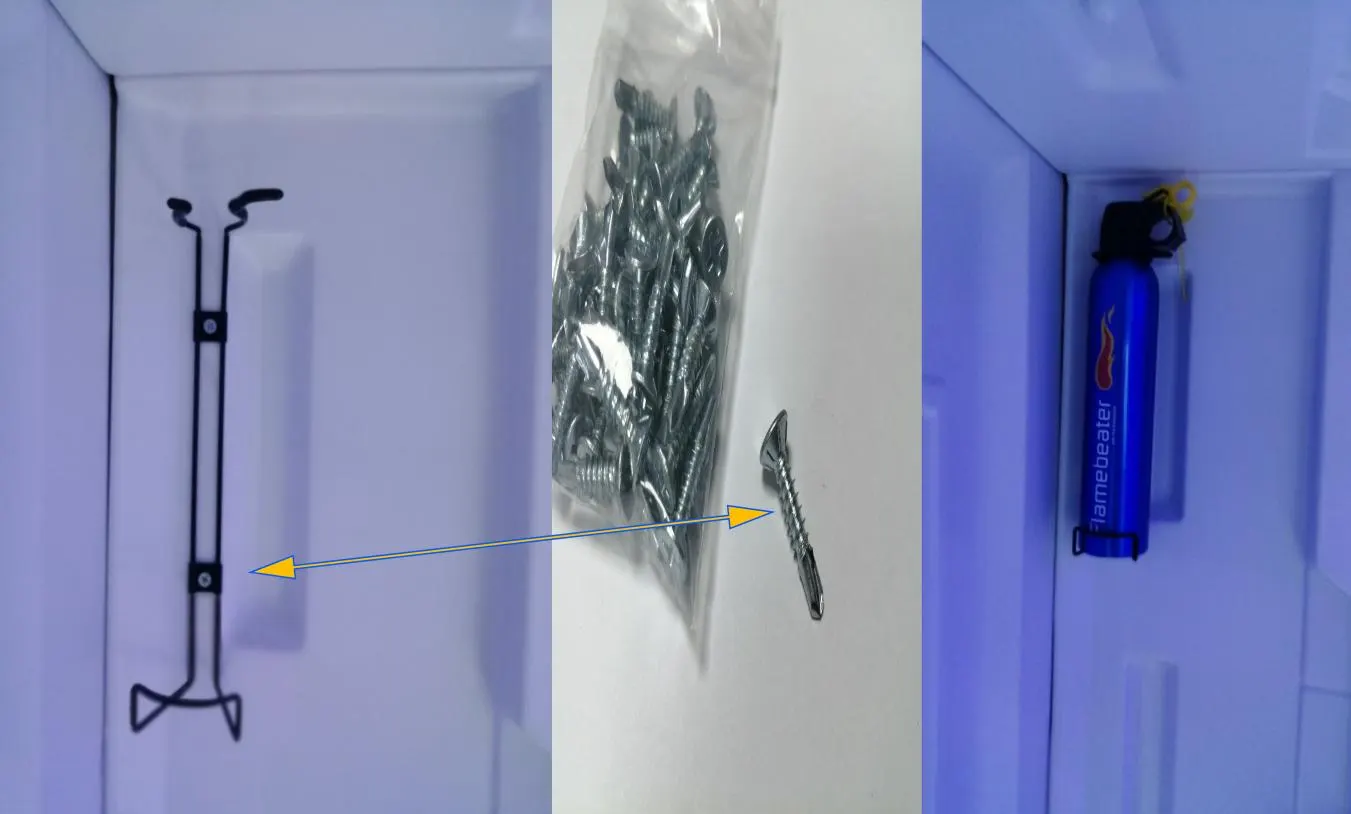

Prepare accessory parts
27

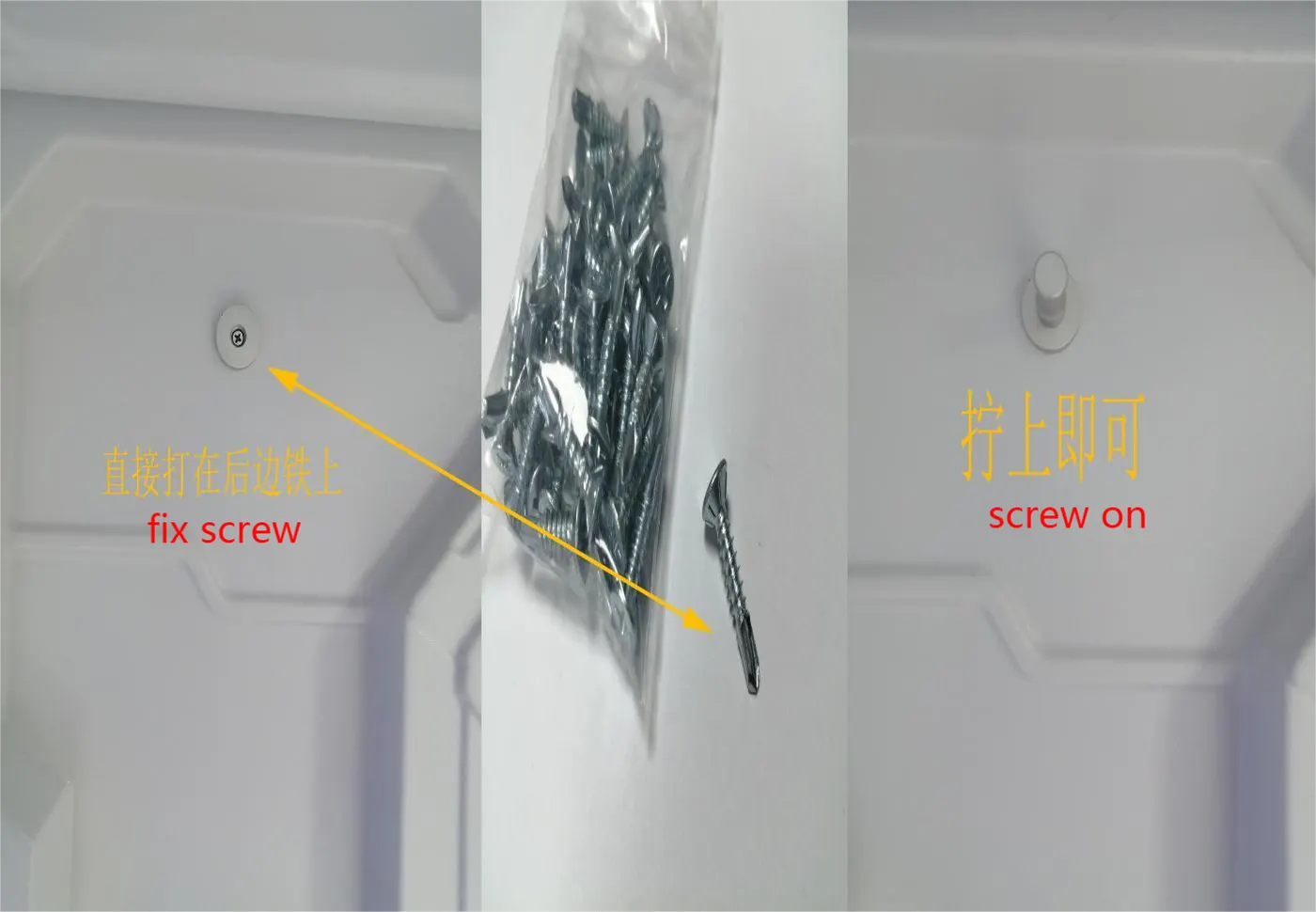

Install internal accessory set
28

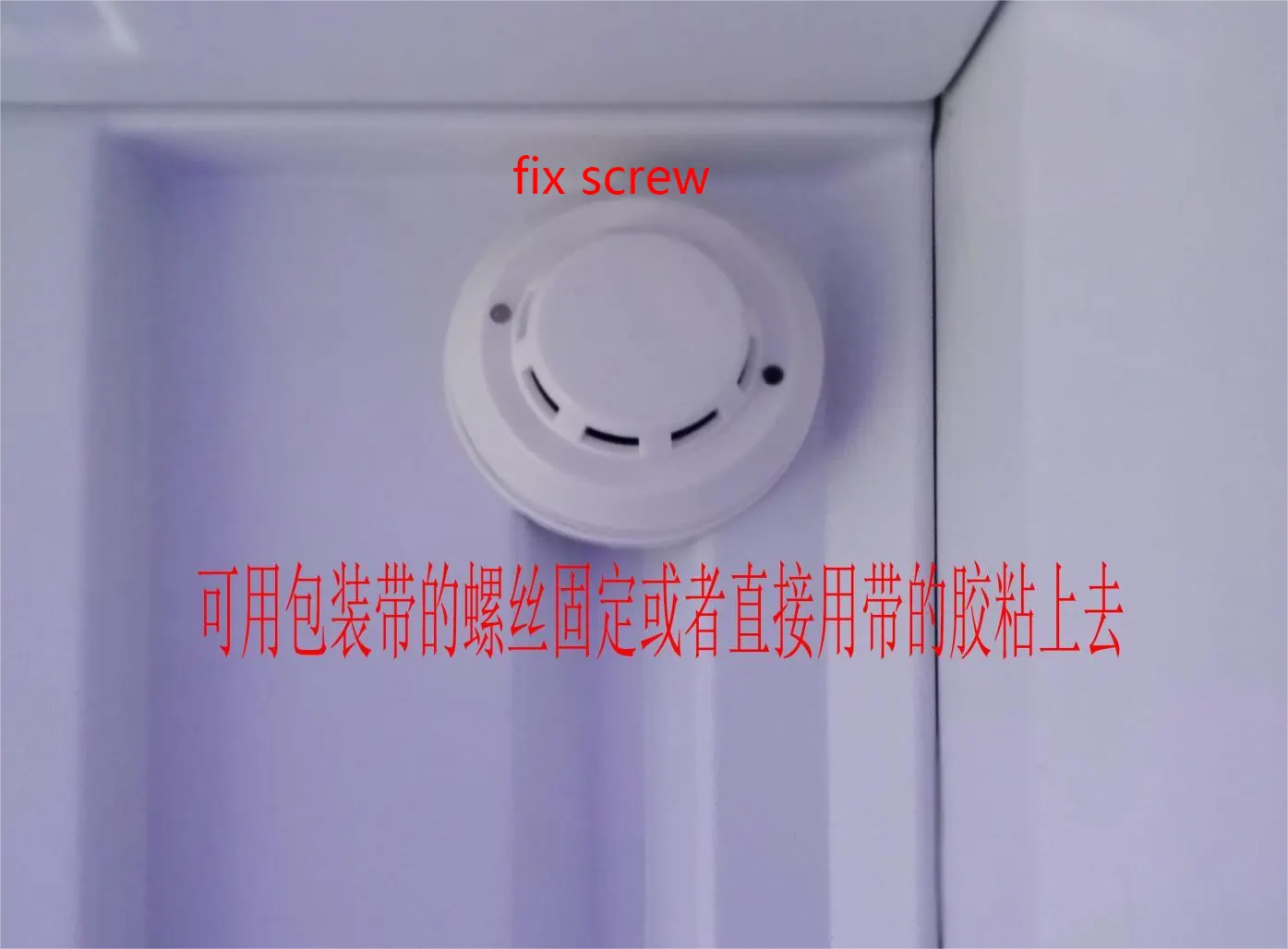

Install control and fitting accessories
29
Verify accessory placement
30

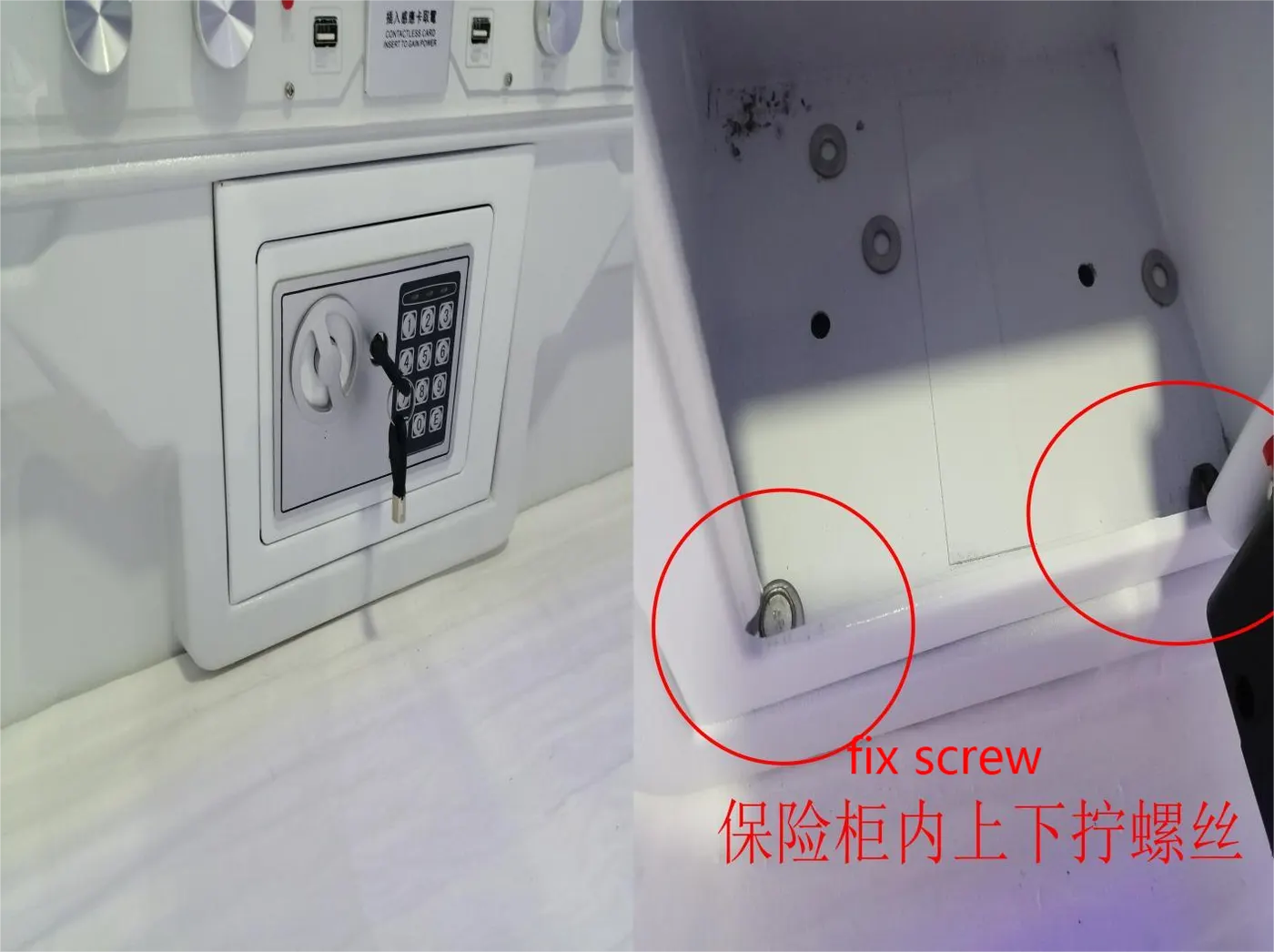

Check accessory fixing points
31

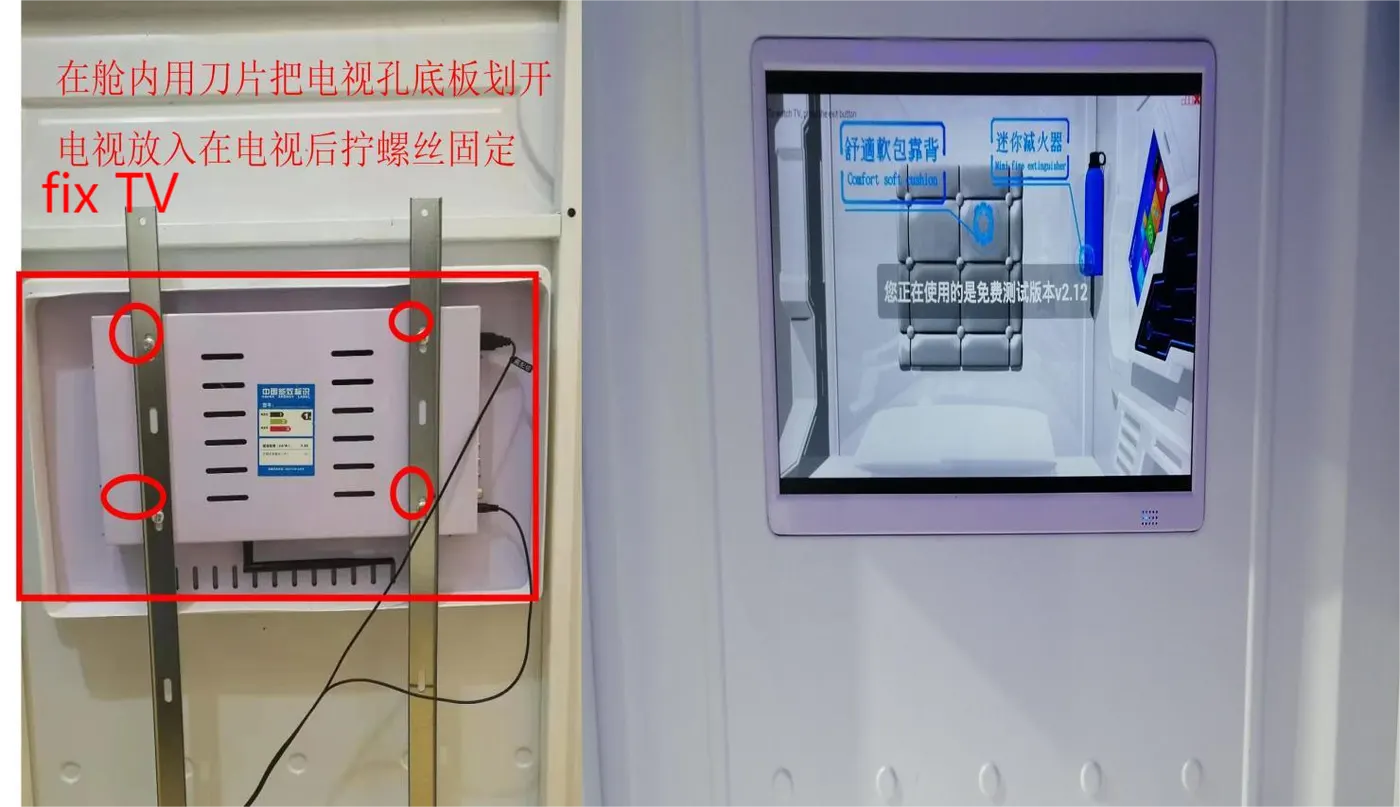

Complete accessory installation
32

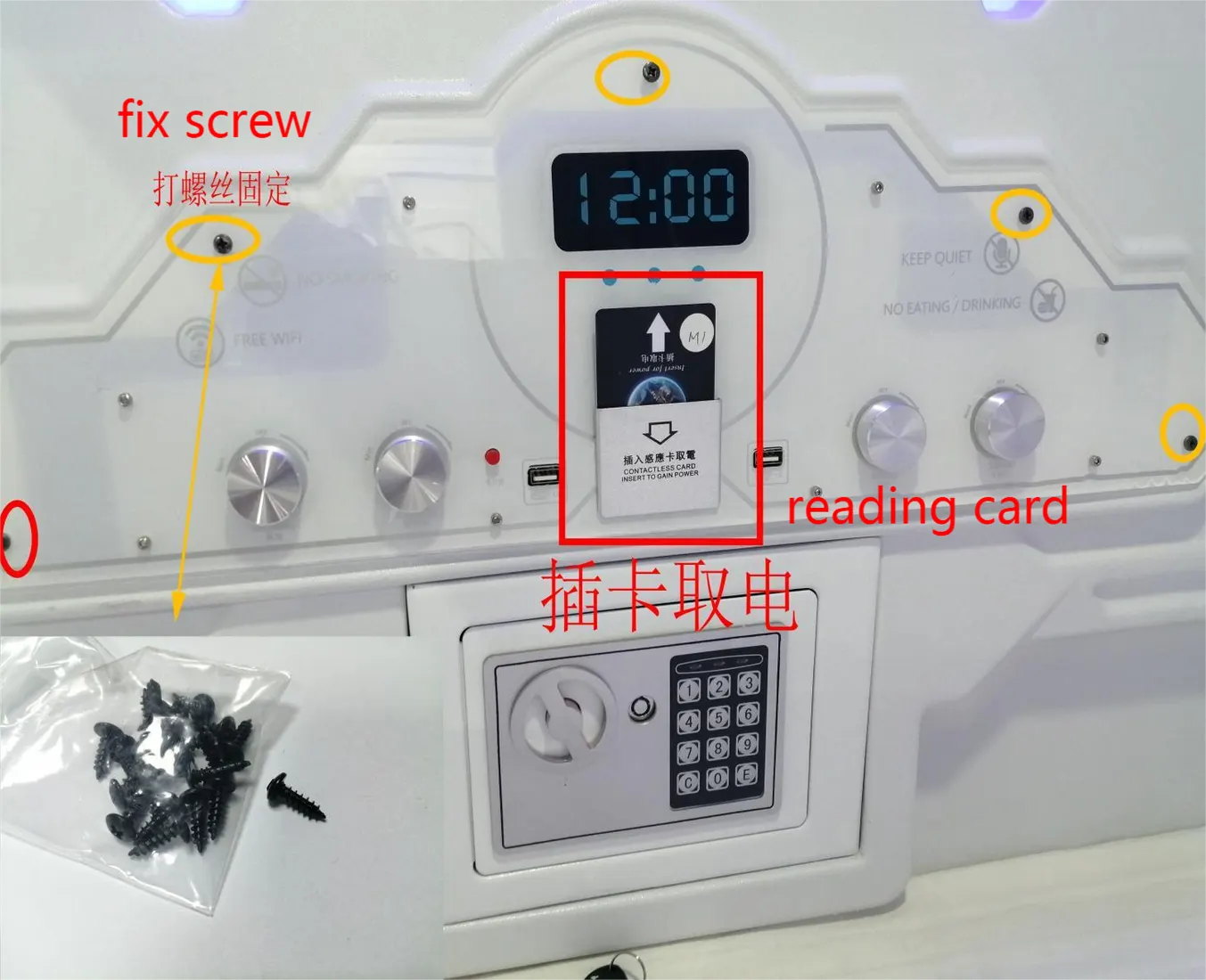

Review accessory close-up detail
33

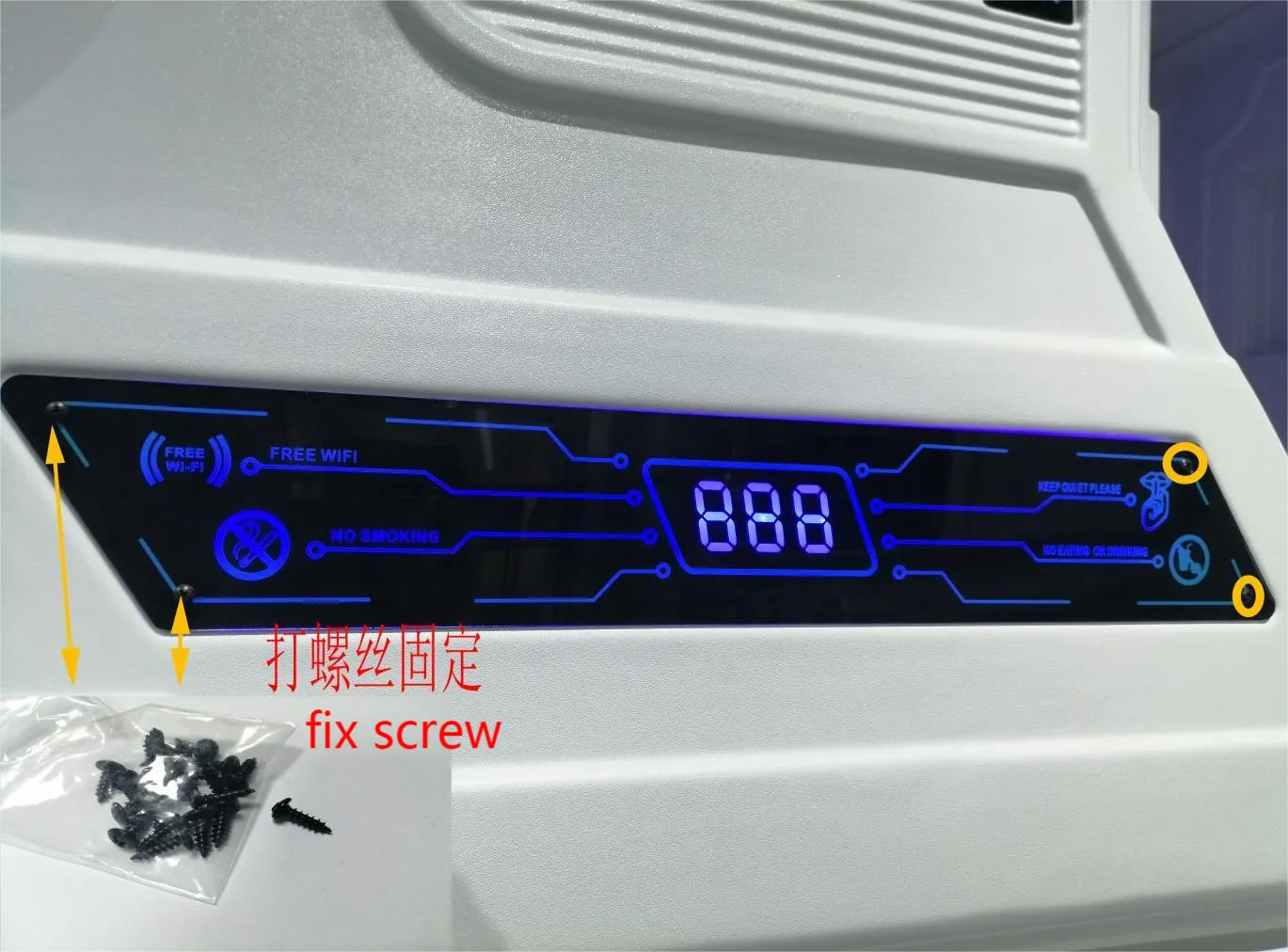

Check final accessory arrangement
34

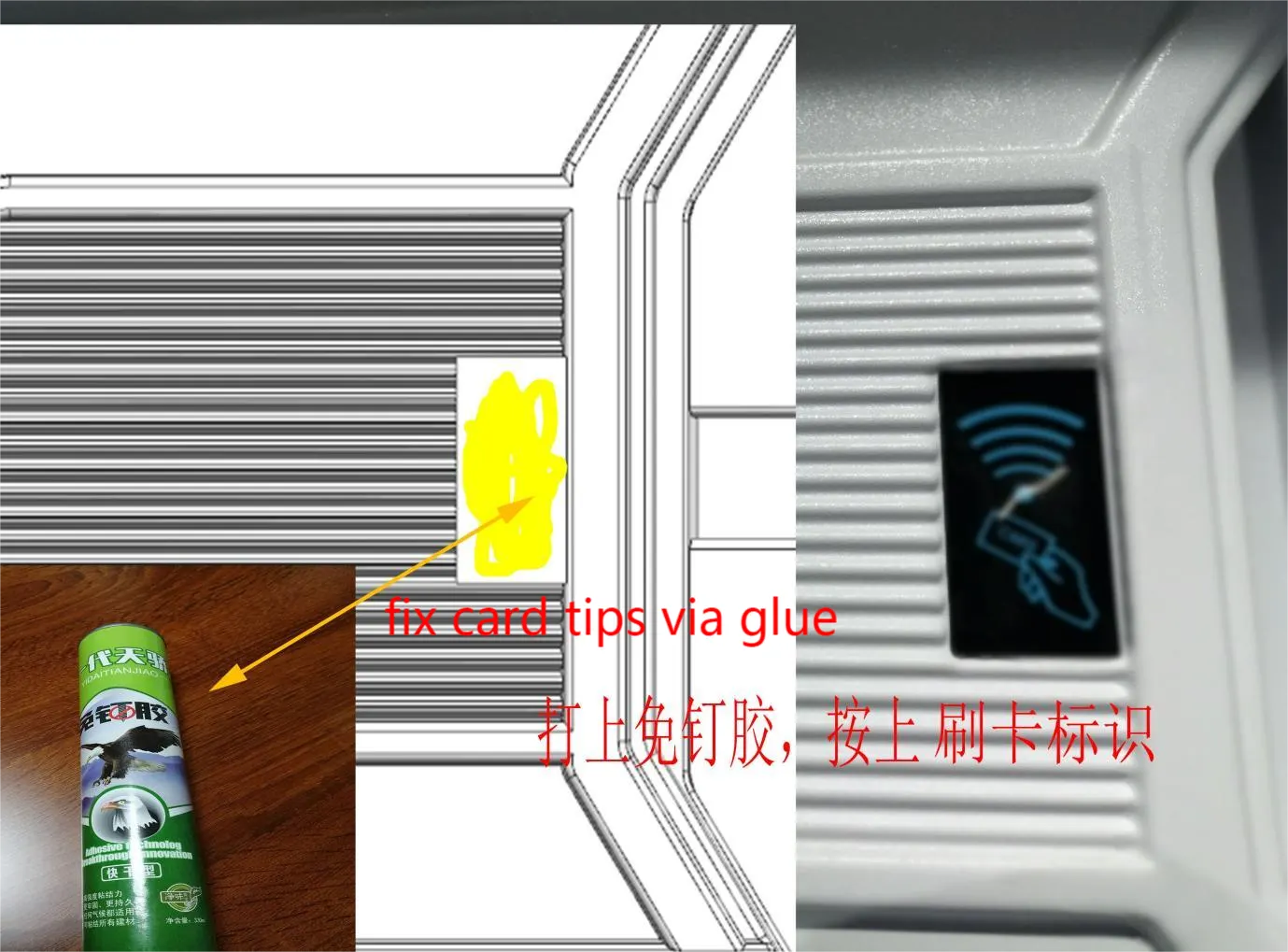

Confirm accessory finish
35

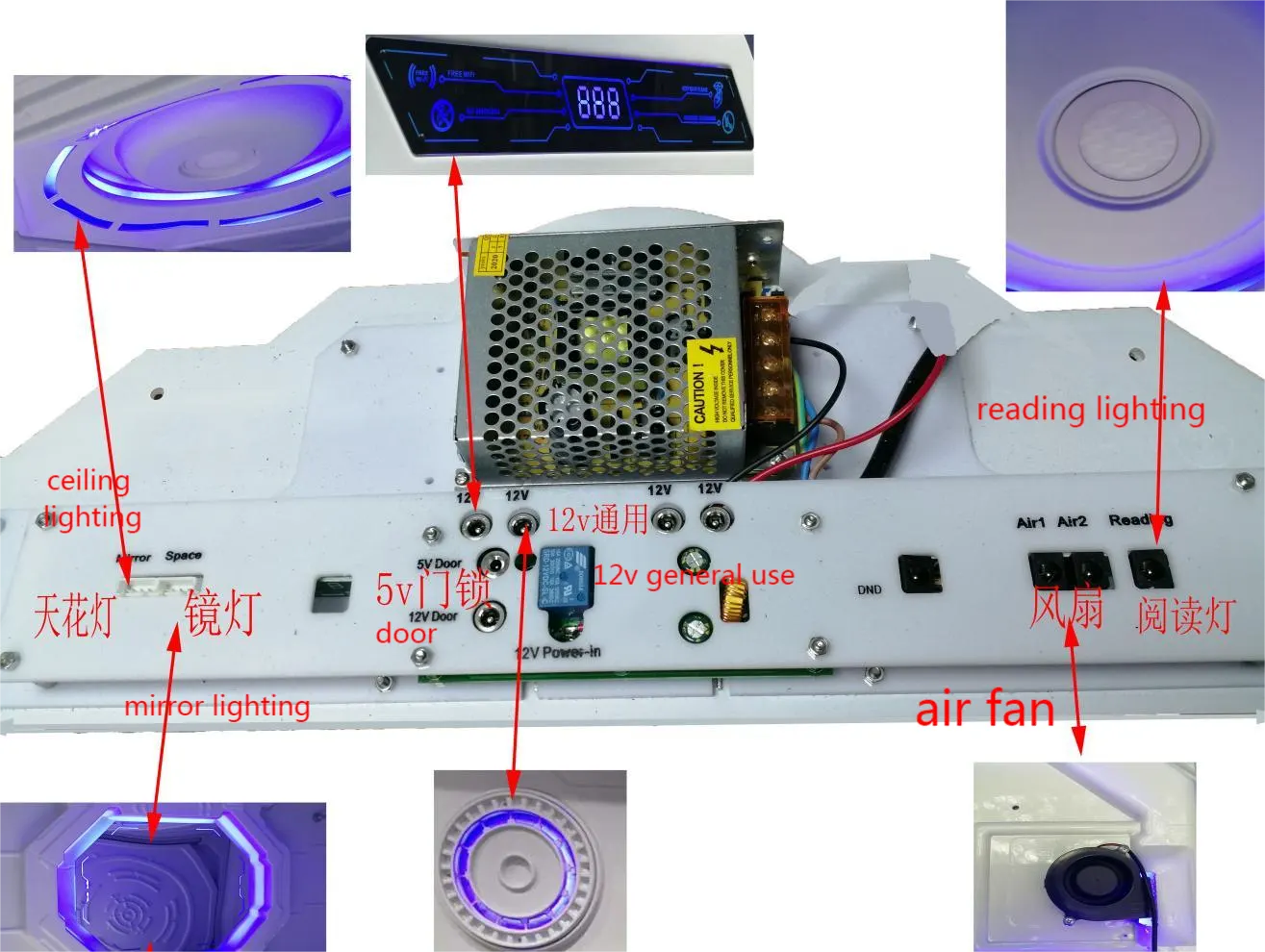

Electrical installation - part 1
Electrical work should be completed by a qualified technician using the supplied wiring diagram and local safety practice.
36

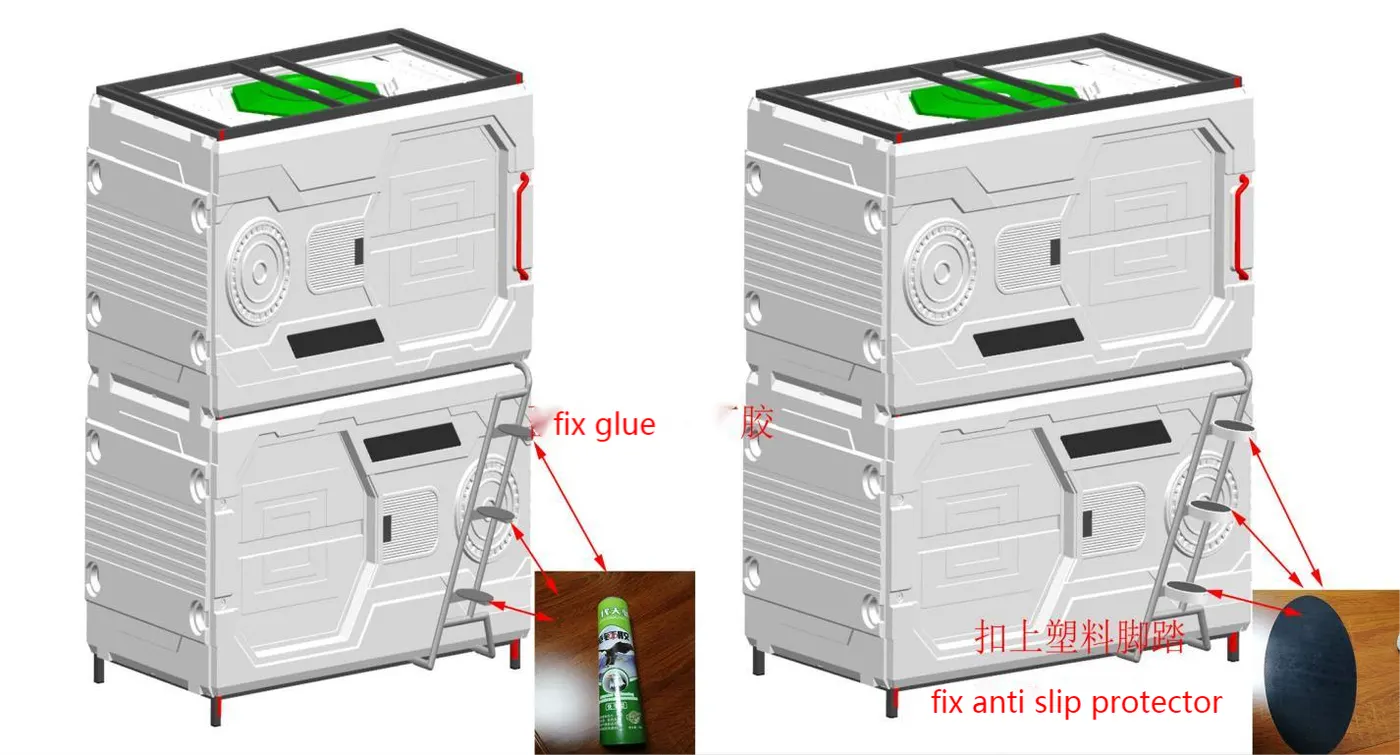

Electrical installation - part 2
37

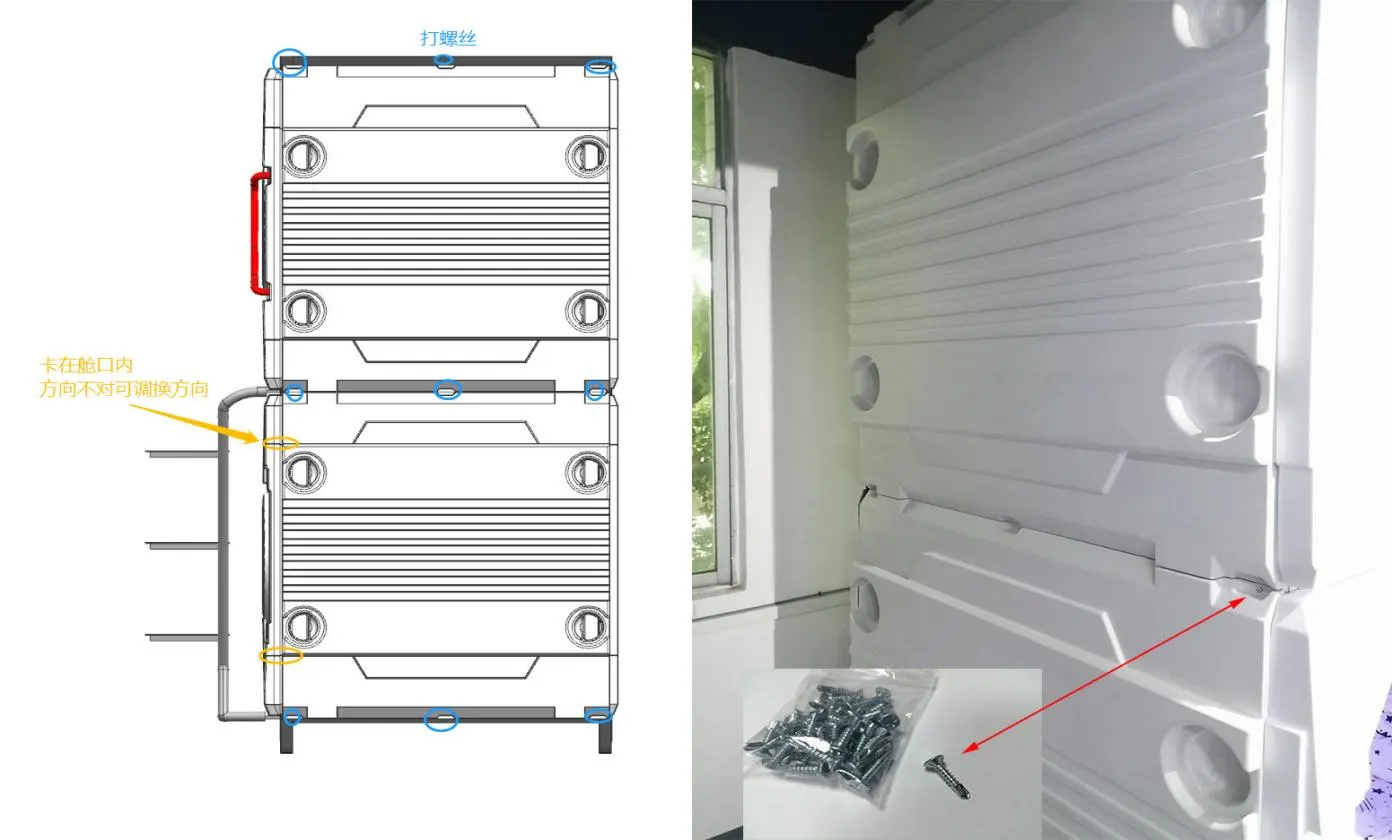

Install side panel
38

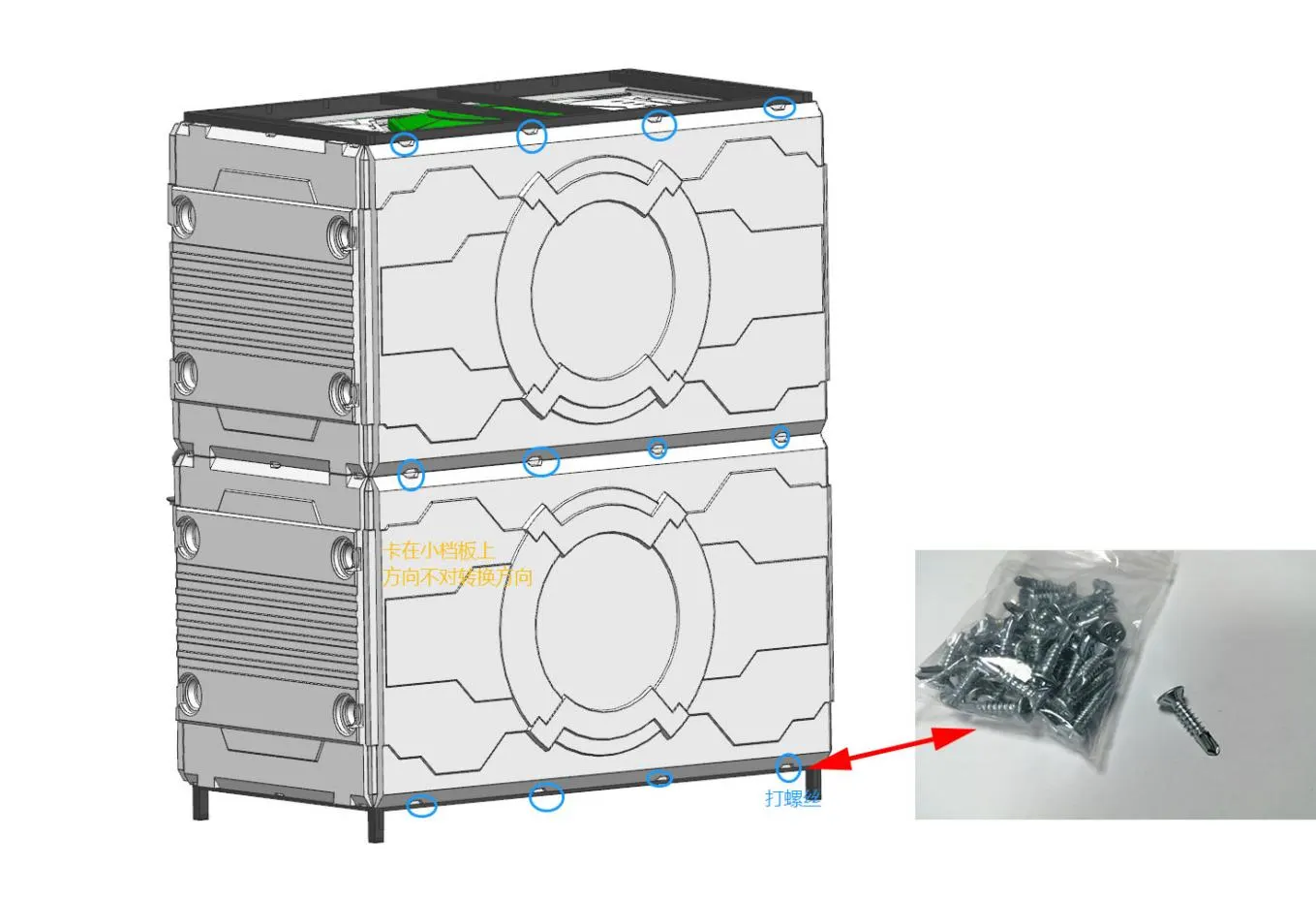

Install back panel
